Product Details
Place of Origin: Changzhou,Jiangsu,China
Brand Name: SUPAL
Model Number: OEM
Payment & Shipping Terms
Minimum Order Quantity: 5PCS
Price: To be negotiated
Packaging Details: 1.One piece in a platic pipe, 10 pieces per group. 2.Use the air bubble paper to encase the plastic pipe. 3.Put the goods encased with air bubble paper in the carton. 4.Other packing will be accept according to your needs.
Delivery Time: 7-15Days
Payment Terms: T/T
Supply Ability: 10000000PCS
Model No.: |
Stainless Steel End Mill |
Raw Material: |
Tungsten Steel |
Coating: |
AlTin TiAlN TiN Naco |
Diameter: |
4mm 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm |
Overall Length: |
50-150mm |
Suitable For: |
Stainless Steel |
Model No.: |
Stainless Steel End Mill |
Raw Material: |
Tungsten Steel |
Coating: |
AlTin TiAlN TiN Naco |
Diameter: |
4mm 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm |
Overall Length: |
50-150mm |
Suitable For: |
Stainless Steel |

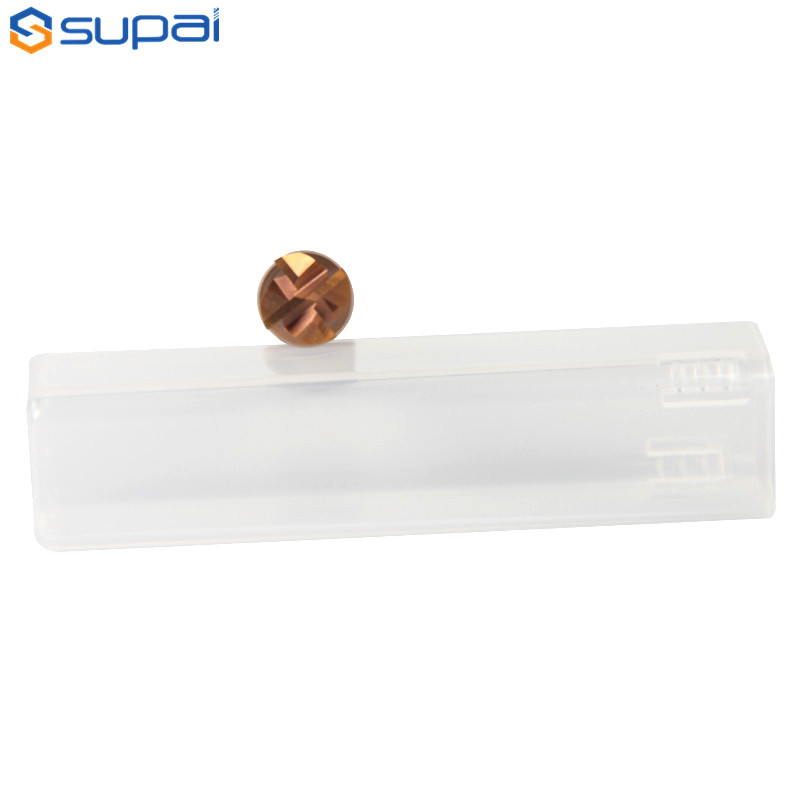

HRC55 2/4 Flutes Solid Carbide Square End Mill for Stainless Steel CNC Milling Tools TiSiN Coating Blue Nano Coating
| Super Raw Material | ||||
| Item Grade | HRC45 | HRC55 | HRC60 | HRC65 |
| (YG10X ) | (YL10.2 & WF25) | (Germany K44 &K40) | ( H10F) | |
| Details | Grain size 0.7um | Grain size 0.6um | Grain size 0.5um | Grain size 0.5um |
| Co10% | Co10% | Co12% | Co10% | |
| Flexural strength | Flexural strength 4000N/mm2 | Flexural strength | Flexural strength 4300N/mm2 | |
| 3320N/mm2 | 4300N/mm2 | |||
| Super Coating | |||||
| Coating Classifying and Advantage | |||||
| Item | Coating Type | AlTin | TiAlN | TiSiN | Naco |
| Characteristic | Hardness(HV) | 3300 | 2800 | 4300 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 | |
| Oxidation Temp.(°C) | 900 | 800 | 1000 | 1200 | |
| Friction Coefficient | 0.35 | 0.3 | 0.25 | 0.4 | |
| Color | Black | Dark Purple | Copper | Blue | |
| Advantages | High heat stability | Normally cutting | Suitable for heavy cutting, and high hardness cutting | For high precision cutting | |
| Suitable for high speed, dry cutting | Suitable for cutting mould steel, stainless | Suitable for high hardness cutting, mould steel processing | |||
| Most suitable for carbide cutting tools, turning insert | |||||
| Welcome and congratulations!You found us a professional factory! | |
| Size & Design | 1.We not only supply all kinds of high quality solid carbide End Mills ,but also different types of Drill Bits,Reamers,Tool Holders,Cutter Heads,Saw Blades and Inserts. |
| 2. We have 0.02mm-25mm different diameter and 38mm-150mm length Milling Cutters for your winner market.HRC45/55/60/65 ,1-6 flutes for you to choose. | |
| 3.OEM:Special Cutters Customized acceptable!Coated OEM also.We can produce according to your drawing,too.Or the hot deisgned recommend to you. | |
| 4. HS Code reference for you to control everything:8207709000. | |
| 5. Mixed size and types in one batch available. | |
| 6. For distributor,we can label your brands on cutters and plastic box. | |
| Coated(Mix Coated ) | 1. We accept Mix coated in the same model number, Also one batch with different coating and types. |
| 2. AlTiN,TiAlN,TiSiN,TiN,DLC,NANO for you to choose to win your competitors! | |
| MOQ (Small Qty ) | 5-10-500-1000-5000-10000 pcs all are welcome. 5 pieces per order is MOQ. |
| OEM One-Step Packing | We package all our goods carefully.We also accept your packing design OEM packing it for your control. |
| Samples Service | 1. Some items free samples for you. |
| 2. Free samples but pay shipping cost. | |
| 3. Lowest shiping fee for you to choose. | |
| 4.Order to us,sample fee will be refund to you. | |
| 5. Become our VIP clients,free samples for you! | |
| 6.Samples within 1 day send out. | |
| 7.OEM samples are hot welcome. | |
