Place of Origin: | Changzhou,Jiangsu,China |
---|---|
Brand Name: | SUPAL |
Model Number: | OEM |
Minimum Order Quantity: | 5PCS |
Price: | To be negotiated |
Packaging Details: | 1.One piece in a platic pipe, 10 pieces per group. 2.Use the air bubble paper to encase the plastic pipe. 3.Put the goods encased with air bubble paper in the carton. 4.Other packing will be accept according to your needs. |
Delivery Time: | 7-15Days |
Payment Terms: | T/T |
Supply Ability: | 10000000PCS |
Product Name: | 2-Edge Carbide Milling Cutter | Coating: | AlTiN, TiAIN, TiCN, TiN, TiAlN |
---|---|---|---|
Helix Angle: | 35° | Material: | Solid Carbide / Tungsten Steel |
Port Of Export: | Shanghai Port |

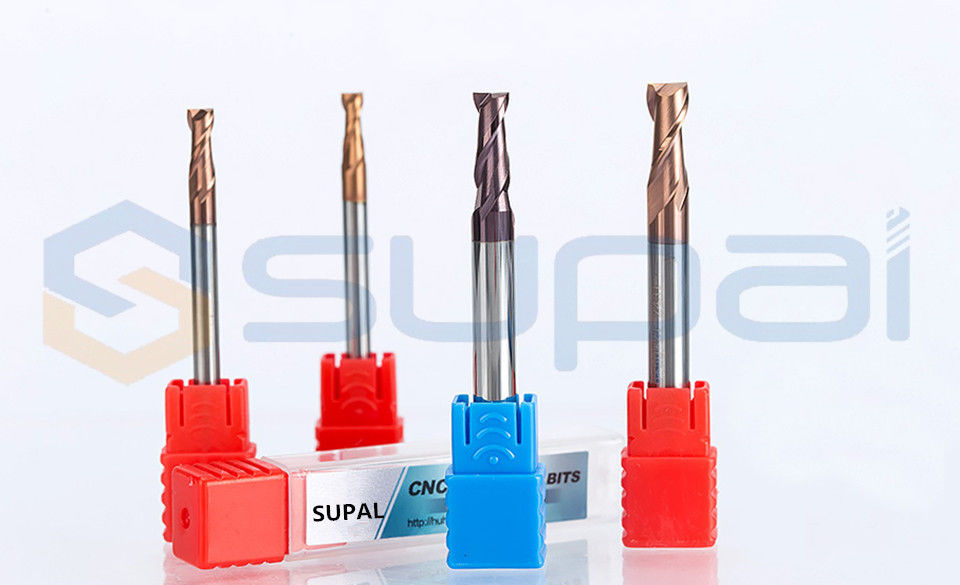

2 Flutes HRC45/55/60/65hrc Flat milling cutters end mill for wood metal
Graininess | 0.6 |
HRC | 45° 55° 60°65° |
Helix angle | 35° |
Number of edges | 2 |
Adapt to processing materials | Copper, stainless steel, alloy steel, tool steel, modulated steel, carbon steel, heat-treated hardened steel |
Standard Carbide End Mill Specification | |||
(HRC:45/50/65) | |||
Diameter | Flute Length | Overall Length | Shank Diameter |
1 | 2.5 | 50 | 4 |
2 | 5 | 50 | 4 |
4 | 10 | 50 | 4 |
5 | 12.5 | 50 | 6 |
6 | 15 | 50 | 6 |
8 | 20 | 60 | 8 |
10 | 25 | 75 | 10 |
12 | 30 | 75 | 12 |
14 | 35 | 80 | 14 |
18 | 45 | 100 | 18 |
20 | 45 | 100 | 20 |
