Tungsten Carbide 2/4 Flutes Ball Nose End Mill With Nano Coating

Product Details

Place of Origin: Changzhou,Jiangsu,China

Brand Name: SUPAL

Model Number: OEM

Payment & Shipping Terms

Minimum Order Quantity: 5PCS

Price: To be negotiated

Packaging Details: 1.One piece in a platic pipe, 10 pieces per group. 2.Use the air bubble paper to encase the plastic pipe. 3.Put the goods encased with air bubble paper in the carton. 4.Other packing will be accept according to your needs.

Delivery Time: 7-15Days

Payment Terms: T/T

Supply Ability: 10000000PCS

Get Best Price
Highlight:

4 Flutes carbide end mill

,

Tungsten ball end milling cutter

Product Name:
Ball Nose End Mill
Coating:
Nano
Color:
Blue
Material:
Tungsten Steel
Shank Type:
Straight
Package:
As Required
Product Name:
Ball Nose End Mill
Coating:
Nano
Color:
Blue
Material:
Tungsten Steel
Shank Type:
Straight
Package:
As Required
Tungsten Carbide 2/4 Flutes Ball Nose End Mill With Nano Coating

Tungsten Carbide 2/4 Flutes Ball Nose End Mill With Nano Coating Excellent Workpiece Finishes



Tungsten Carbide end mills are a type of milling cutter, a cutting tool used in industrial milling applications. We offer a wide variety of Tungsten Carbide cutting tools including end mills and bore machining products. All products are sinter-HIP processed. This process ensures complete metallurgical integrity needed in high-performance end mill.

Milling cutters/end mills are broadly divided into:

1. Square end mill: finish milling or rough milling, milling grooves, removing a large number of blanks, small-area horizontal plane or contour finishing;

2. Ball end milling cutter/end mill: semi-finishing and finishing of curved surface; the small blade can finish milling small chamfer of steep surface/straight wall.

Two flute end mills are center cutting and designed for plunging, slotting, contouring, and increased chip clearance at higher feed rates in heavy peripheral cuts.

Ball end minimizes tool deflection and increases productivity when contouring in deep cavities.

3, Radius end mill: rough milling when the surface change is small, the small concave area is less, and in relatively flat area.

4. Taper end mills: with chamfer, it can be used for rough milling to remove a large number of blanks, and it can also be fine-milled with a small chamfer on the flat surface (relative to the steep surface).

5. Drill

6. Thread mill

7. Formed cutter

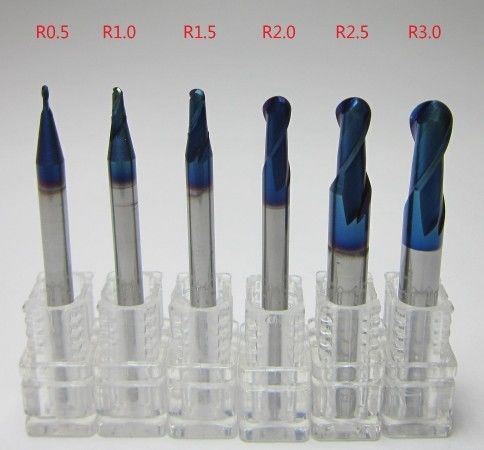

Tungsten Carbide 2/4 Flutes Ball Nose End Mill With Nano Coating 0

Tungsten Carbide 2/4 Flutes Ball Nose End Mill With Nano Coating 1

Tungsten Carbide 2/4 Flutes Ball Nose End Mill With Nano Coating 2



Super Raw Material
Item Grade HRC45 HRC55 HRC60 HRC65
(YG10X ) (YL10.2 & WF25) (Germany K44 &K40) ( H10F)
Details Grain size 0.7um Grain size 0.6um Grain size 0.5um Grain size 0.5um
Co10% Co10% Co12% Co10%
Flexural strength Flexural strength 4000N/mm2 Flexural strength Flexural strength 4300N/mm2
3320N/mm2   4300N/mm2
Super Coating
Coating Classifying and Advantage
Item Coating Type AlTin TiAlN TiSiN Naco
Characteristic Hardness(HV) 3300 2800 4300 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp.(°C) 900 800 1000 1200
Friction Coefficient 0.35 0.3 0.25 0.4
Color Black Dark Purple Copper Blue
Advantages High heat stability Normally cutting Suitable for heavy cutting, and high hardness cutting For high precision cutting
  Suitable for high speed, dry cutting   Suitable for cutting mould steel, stainless Suitable for high hardness cutting, mould steel processing
  Most suitable for carbide cutting tools, turning insert

Features:

1. The use of new ultra-fine particles of tungsten steel material, with high wear resistance and strength, exclusive high-speed cutting applications for all-round milling cutter.

2. The blade is covered with a coating, the high-speed roughing of the hot material can be finely processed to reduce the number of tool changes.

Applications

1. Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.

2. Applicated for Aerospace, transportation, Medical equipment, military manufacturing, mould development, apparatus and instrument, etc

2 - FLUTE

Tungsten Carbide 2/4 Flutes Ball Nose End Mill With Nano Coating 3
