Product Details
Place of Origin: Changzhou,Jiangsu,China
Brand Name: SUPAL
Model Number: OEM
Payment & Shipping Terms
Minimum Order Quantity: 5PCS
Price: To be negotiated
Packaging Details: 1.One piece in a platic pipe, 10 pieces per group. 2.Use the air bubble paper to encase the plastic pipe. 3.Put the goods encased with air bubble paper in the carton. 4.Other packing will be accept according to your needs.
Delivery Time: 7-15Days
Payment Terms: T/T
Supply Ability: 10000000PCS
Name: |

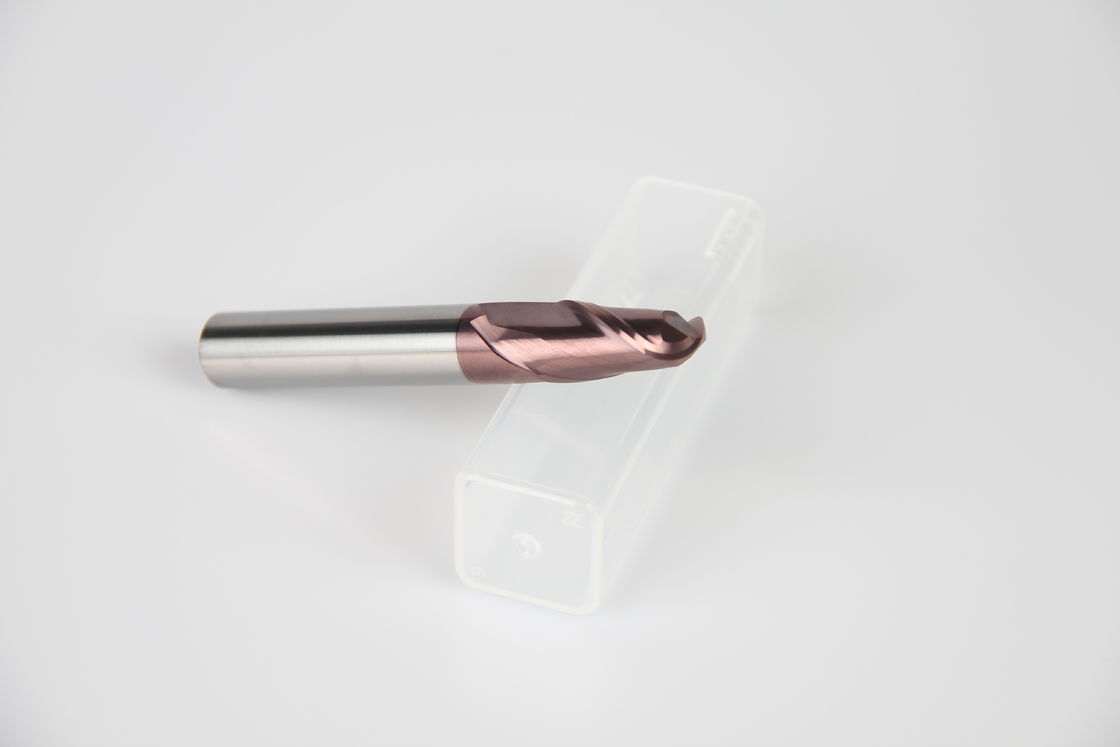

Cabide End Mill |
Diameter: |
1-20mm, Customized |
Precision: |
High Precision |
Overall Length: |
50-150mm,customized |
Coating: |
As You Request |
Suitable For: |
Matel/wood/plastic/steel |
Name: |
Cabide End Mill |
Diameter: |
1-20mm, Customized |
Precision: |
High Precision |
Overall Length: |
50-150mm,customized |
Coating: |
As You Request |
Suitable For: |
Matel/wood/plastic/steel |
Original raw micro grain material, high hardness and T.R.S.
1, Co: 10-12%, WC: 88-90%,
Grain size: 0.2-0.6μm,
Hardness: 92.5-94.0 HRA,
T.R.S.: 4200-4800 N/mm2,
Density: 14.3-14.8 G/cm3
|
45°Aluminum end mill
|
Aluminum alloy, Copper alloy, Resin treatment
|
||
|
45°Carbide end mill
|
Carbide steel, Alloy steel, Tool steel
|
||
|
50°Carbide end mill
|
Carbide steel, Alloy steel, Tool steel, Hardened & tempered steel
|
||
|
55°Aluminum end mill
|
Aluminum alloy,Copper alloy, Resin treatment
|
||
|
55°Carbide end mill
|
Carbide steel, Alloy steel,tool steel,Hardened & tempered steel, HRC ≈52 hardened steel
|
||
|
58°Carbide end mill
|
Hardened & tempered steel, HRC≈52 to 55 hardened steel
|
||
|
60°Stainless steel end mill
|
Stainless steel, Ti alloy,
|
||
|
60°Carbide end mill
|
Hardened & tempered steel, HRC≈52 to 55 hardened steel,HRC58 to 65 hardened steel, stainless steel, Ti alloy
|
||
|
65°Carbide end mill
|
HRC≈52 to 55 hardened steel,HRC58 to 65 hardened steel
|
||
our advantage
As a factory supplier assurance for you:
1. 100% Product Quality Protection
2. 100% On-Time Shipment Protection
3. 100% Payment Protection
4. Outstanding and professional R&D team
5. Strictly quality inspection
Super coating
TiAN,TiCN TiN and ARCO ,
improve tool life, reduce the coefficient of friction.
Applications
Copper, Cast Iron, Carbon steel, Tool steel,
Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.
Specifications
| Model NO. | Diameter/D1 | Flute Length/L1 | O.A.L/L3 | Shank Dia/D2 |
| SP2010 | R0.5 | 2 | 50 | 4 |
| SP2015 | R0.75 | 3 | 50 | 4 |
| SP2015-75 | R0.75 | 3 | 75 | 4 |
| SP2020 | R1.0 | 4 | 50 | 4 |
| SP2020-75 | R1.0 | 4 | 75 | 4 |
| SP2025 | R1.25 | 5 | 50 | 4 |
| SP2030-3 | R1.5 | 6 | 50 | 3 |
| SP2030 | R1.5 | 6 | 50 | 4 |
| SP2030-75 | R1.5 | 6 | 75 | 4 |
| SP2040 | R2.0 | 8 | 50 | 4 |
| SP2040-75 | R2.0 | 8 | 75 | 4 |
| SP2040-100 | R2.0 | 8 | 100 | 4 |
| SP2050-5 | R2.5 | 10 | 50 | 5 |
| SP2050 | R2.5 | 10 | 50 | 6 |
| SP2060 | R3.0 | 12 | 50 | 6 |
| SP2060-75 | R3.0 | 12 | 75 | 6 |
| SP2060-100 | R3.0 | 12 | 100 | 6 |
| SP2080 | R4.0 | 16 | 60 | 8 |
| SP2080-75 | R4.0 | 16 | 75 | 8 |
| SP2080-100 | R4.0 | 16 | 100 | 8 |
| SP2100 | R5.0 | 20 | 75 | 10 |
| SP2100-100 | R5.0 | 20 | 100 | 10 |
| SP2120 | R6.0 | 24 | 75 | 12 |
| SP2120-100 | R6.0 | 24 | 100 | 12 |
| SP2120-150 | R6.0 | 24 | 150 | 12 |
| SP2160 | R8.0 | 32 | 100 | 16 |
| SP2160-150 | R8.0 | 32 | 150 | 16 |
| SP2200 | R10.0 | 40 | 100 | 20 |
| SP2200-150 | R10.0 | 40 | 150 | 20 |
