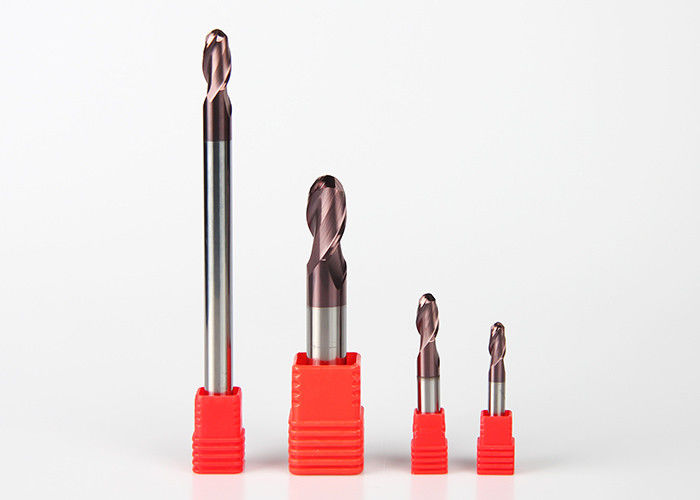

Long Ball Nose End Mill 50 - 150mm Overall Length Solid Carbide End Mill

China Long Ball Nose End Mill 50 - 150mm Overall Length Solid Carbide End Mill supplier
Long Ball Nose End Mill 50 - 150mm Overall Length Solid Carbide End Mill supplier Long Ball Nose End Mill 50 - 150mm Overall Length Solid Carbide End Mill supplier Long Ball Nose End Mill 50 - 150mm Overall Length Solid Carbide End Mill supplier Long Ball Nose End Mill 50 - 150mm Overall Length Solid Carbide End Mill supplier

Large Image :  Long Ball Nose End Mill 50 - 150mm Overall Length Solid Carbide End Mill

Product Details:

Place of Origin: Jiangsu,China
Brand Name: OEM

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: 1PC in Single Plastic Tube
Delivery Time: 5-15days according to quantity
Payment Terms: T/T,PAYPAL,WESTEN UNION,CREDIT CARD,CASH
Supply Ability: 100000PCS
Contact Now
Detailed Product Description
Product Name: Solid Carbide End Mill Diameter: 1-20mm
Overall Length: 50-150mm Coating: AlTiN, TiAIN, TiCN, TiN, Other
Material: Carbide, 100% Virgin Carbide Characteristic: High Rigidity /Good Wear Resistance

Long Tungsten Solid Carbide Cnc Round Spherical Ballnose Ball Nose Endmill End Mill Mills Milling Cutter





Super Raw Material
Item Grade HRC45 HRC55 HRC60 HRC65
(YG10X ) (YL10.2 & WF25) (Germany K44 &K40) (Sandvik H10F)
Details Grain size 0.7um Grain size 0.6um Grain size 0.5um Grain size 0.5um
Co10% Co10% Co12% Co10%
Flexural strength Flexural strength 4000N/mm2 Flexural strength Flexural strength 4300N/mm2
3320N/mm2   4300N/mm2



Super Coating
Coating Classifying and Advantage
Item Coating Type AlTin TiAlN TiSiN Naco
Characteristic Hardness(HV) 3300 2800 4300 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp.(°C) 900 800 1000 1200
Friction Coefficient 0.35 0.3 0.25 0.4
Color Black Dark Purple Copper Blue
Advantages High heat stability Normally cutting Suitable for heavy cutting, and high hardness cutting For high precision cutting
  Suitable for high speed, dry cutting   Suitable for cutting mould steel, stainless Suitable for high hardness cutting, mould steel processing
  Most suitable for carbide cutting tools, turning insert



Specification Flute Dia(d) Flute Length (L1) Shank Dia(D) Overall Length(L)
Φ1x3Cx4Dx50L 1 3 4 50
Φ1.5x4Cx4Dx50L 1.5 4 4 50
Φ2x6Cx4Dx50L 2 6 4 50
Φ2.5x8Cx4Dx50L 2.5 8 4 50
Φ3x8Cx4Dx50L 3 8 4 50
Φ3.5x10Cx4Dx50L 3.5 10 4 50
Φ4x10Cx4Dx50L 4 10 4 50
Φ5x13Cx6Dx50L 5 13 6 50
Φ6x15Cx6Dx50L 6 15 6 50
Φ8x20Cx8Dx60L 8 20 8 60
Φ4x20Cx4Dx75L 4 20 4 75
Φ5x20Cx6Dx75L 5 20 6 75
Φ6x20Cx6Dx75L 6 20 6 75
Φ8x25Cx8Dx75L 8 25 8 75
Φ10x25Cx10Dx75L 10 25 10 75
Φ12x30Cx12Dx75L 12 30 12 75
Φ4x25Cx4Dx100L 4 25 4 100
Φ5x25Cx6Dx100L 5 25 6 100
Φ6x30Cx6Dx100L 6 30 6 100
Φ8x35Cx8Dx100L 8 35 8 100
Φ10x40Cx10Dx100L 10 40 10 100
Φ12x45Cx12Dx100L 12 45 12 100
Φ14x40Cx14Dx100L 14 40 14 100
Φ16x40Cx16Dx100L 16 40 16 100
Φ18x40Cx18Dx100L 18 40 18 100
Φ20x45Cx20Dx100L 20 45 20 100





Long Ball Nose End Mill 50 - 150mm Overall Length Solid Carbide End Mill

Long Ball Nose End Mill 50 - 150mm Overall Length Solid Carbide End Mill
