Product Details:
Payment & Shipping Terms:
|
| Model Number: | End Mill | Type: | Ball Nose |
|---|---|---|---|
| Coating: | AlTiN/TiAln/TiN/Naco | Hardness: | 55/60/65/70 |
| Machine Type: | CNC Milling Machine | Suitable For: | Cast Iron, Carbon Steel, Copper |
| High Light: | solid carbide roughing end mills,ball nose milling cutter |
||

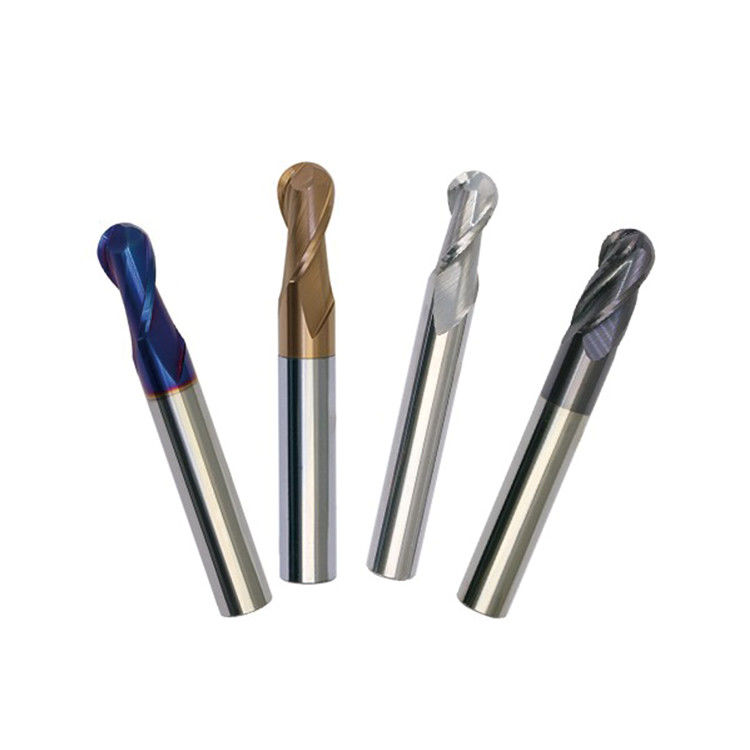

Ball end mills, also known as ball nose end mills, are used formilling contoured surfaces, slotting and pocketing.
A ball end mill is constructed of a round cutting edge and used in the machining of dies and molds.
| Standard Carbide End Mill Specification | |||
| (HRC:45/50/65) | |||
| Diameter | Flute Length | Overall Length | Shank Diameter |
| 1 | 2.5 | 50 | 4 |
| 2 | 5 | 50 | 4 |
| 4 | 10 | 50 | 4 |
| 5 | 12.5 | 50 | 6 |
| 6 | 15 | 50 | 6 |
| 8 | 20 | 60 | 8 |
| 10 | 25 | 75 | 10 |
| 12 | 30 | 75 | 12 |
| 14 | 35 | 80 | 14 |
| 18 | 45 | 100 | 18 |
| 20 | 45 | 100 | 20 |
What is Carbide ?
Carbide is one of the hardest material to be found and has amazing wear resistance capabilities that make it ideal for the many tasks it performs .Not only is it very hard ,but it is able to withstand a great deal of abrasion,which enables the carbide cutting tools to outperform other material .all our end mills are produced from solid carbide material .
Machining operation of Tungsten Carbide Ball nose End mill cutter bits:
Profile machining
Slot machining
Deep slot machining
Description of Tungsten carbide end mills/Milling cutter :
| Flute type : | |||
| 2-flute flattened end mills | 3-flute flattened end mills | 4-flute flattened end mills | 6-flute flattened end mills |
| 2-flute ball nose end mills | |||
| 2-flute radius end mills | 4-flute radius end mills | ||
| Helix angle: | 35° 45° | ||
| Tip format : | Tip protection type | Tip type | |
| Super Coated | NaNo TiAIN | TiAN | AITiN |
