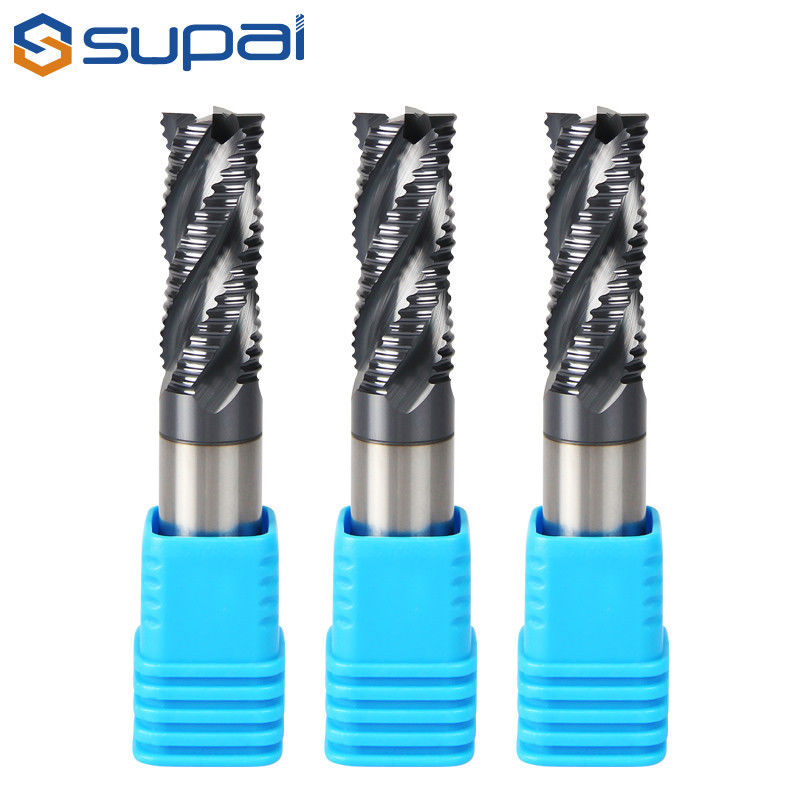

20mm Carbide End Mill

Product Details

Place of Origin: Changzhou,Jiangsu,China

Brand Name: SUPAL

Model Number: OEM

Payment & Shipping Terms

Minimum Order Quantity: 5PCS

Price: To be negotiated

Packaging Details: 1.One piece in a platic pipe, 10 pieces per group. 2.Use the air bubble paper to encase the plastic pipe. 3.Put the goods encased with air bubble paper in the carton. 4.Other packing will be accept according to your needs.

Delivery Time: 7-15Days

Payment Terms: T/T

Supply Ability: 10000000PCS

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                20mm Carbide End Mill, 4 Shank Carbide End Mill, HHS Carbide End Mill


Product Name:	End Mill	Brand:	SUPAL
Diameter:	0.5-20mm	Shank:	4-20mm
Coating:	Coating According To Your Needs	Suitable For:	Cast Iron, Hardened Steel, Stainless Steel, Etc

Product Name:	End Mill
Brand:	SUPAL
Diameter:	0.5-20mm
Shank:	4-20mm
Coating:	Coating According To Your Needs
Suitable For:	Cast Iron, Hardened Steel, Stainless Steel, Etc

20mm Carbide End Mill

What is an end mill?

It is defined as a shank type milling cutter that has a cutting edge on the outer surface and cross-section. An end mill is a tool that rotates and shaves the sides and top surface of a processed item with an outer blade and a bottom blade of a cross-section, respectively. End mills are especially used in precision processing of electrical, electronic and automotive parts and molds.

Selection of end mill

The performance of an end mill varies depending on the settings such as the number of blades, twist angle, inclination angle, relief angle and coating type, and a suitable shape is required for high-speed cutting operations.

The main part details of End mills

20mm Carbide End Mill 0

Product shape depending on the number of blades

20mm Carbide End Mill 1

Issues and solutions when using an end mill

Damaged blades	Fast transfer speed, excessive amount of slotting Excessive protrusion of tool Inadequate stiffness of tool poor fixation of item Poor fixation of item	Reduce transfer speed Reduce amount of slotting Reduce amount of protrusion Use minimum blade length Increase fixed stiffness Increase fixed stiffness
Vibration occurred during cutting	Excessive primary outer relief angle Excessive protrusion of tool Improper cutting conditions	Reduce primary outer relief angle Reduce the amount of protrusion Adjust cutting and transfer speeds
Reduced cutting performance	Use unsuitable end mill Low outer inclination angle Rapid wear of cutting blades	Use an end mill suitable for items to be cut Increase outer inclination angle Perform early regrind
Sudden occurrence of wear	Excessive cutting speed Unsuitable outer inclination angle Upward cutting operation	Reduce cutting speed, modify outer inclination angle Consider downward cutting operation
Poor chip discharge	Small space for chip discharge Excessive wear on blades Excessive amount of slotting Low injection pressure or amount of cutting oil	Reduce transfer speed and use an end mill with small number of blades Perform early regrind Reduce amount of slotting Increase injection pressure and amount
Poor surface roughness	Fast transfer speed Rapid wear of cutting blades Excessive amount of slotting Low cutting speed	Reduce transfer speed Perform early regrind Reduce amount of slotting Increase cutting speed
Damaged during cutting	Fast transfer speed Excessive protrusion of tool Significant damage of cutting blades Excessive amount of slotting	Reduce transfer speed Reduce amount of protrusion Perform early regrind Reduce amount of slotting
Poor processed dimensions	Small number of blades Excessive cutting conditions Use of long blades Poor accuracy of machine or chuck	Use an end mill with a greater number of blades Adjust cutting conditions, replace Use short blades, repair or replace machine or chuck
