Product Details
Place of Origin: Changzhou,Jiangsu,China
Brand Name: SUPAL
Payment & Shipping Terms
Minimum Order Quantity: 10PCS
Price: To be negotiated
Packaging Details: 1.One piece in a platic pipe, 10 pieces per group. 2.Use the air bubble paper to encase the plastic pipe. 3.Put the goods encased with air bubble paper in the carton. 4.Other packing will be accept according to your needs.
Delivery Time: 7-15Days
Payment Terms: T/T
Supply Ability: 100000000PCS
Product Number: |
R0.1xD4x50L-2F |
Coating: |
NACo 3 Black, NACo 3 Black |
Tolerance: |
±0.01 |
Material: |
Tungsten Carbide, Tungsten Carbide |
Application: |
Side Face/ Step Shoulder/ Straight Slot /Deep Slot |
Product Number: |
R0.1xD4x50L-2F |
Coating: |
NACo 3 Black, NACo 3 Black |
Tolerance: |
±0.01 |
Material: |
Tungsten Carbide, Tungsten Carbide |
Application: |
Side Face/ Step Shoulder/ Straight Slot /Deep Slot |

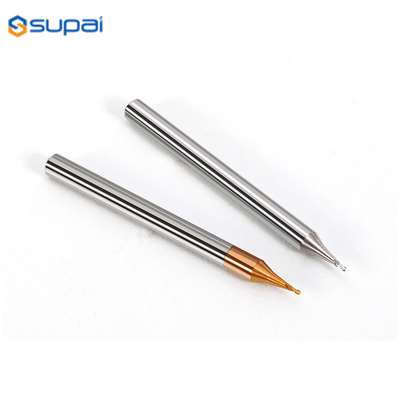

High Precision Carbide Micro 2f End Mills Dia0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9mm Fine grain
The miniature end mill is an end mill manufactured by reducing the geometric parameters of the ordinary end mill according to the principle of proportional scaling, and it cannot guarantee the reliability of the production process. Often micro end mills only "cut" but not "cut", and not many chips are produced. The reason for this has to do with a misunderstanding of the relationship between the length of a micro end mill and the depth of engagement. It is precisely this misunderstanding that causes the micro end mill to break during machining.
Under this circumstance, a new type of miniature end mill with lower cost has been developed. The feature of this design is that the transition of the miniature end mill from the cone to the cutting point is an arc. On the one hand, the hyperbolic transition tool shank avoids the contact between the tool and the workpiece during the cutting process, thereby reducing the frictional load. On the other hand, the circular cross section of the shank also has good elastic deformation properties, preventing stress cracks in the shank of the micro end mill. In this way, each cutting edge involved in cutting is subjected to the same cutting force. Sudden changes in cutting conditions can be compensated and balanced by the micro end mill's slender elastic shank. Depending on the material to be cut, the cutting part can have the best axial penetration depth, which is convenient for removing all machining allowances at one time.
|
Product Name
|
High Precision Carbide Micro 2F End Mill 0.1mm
|
||
|
Workpiece Material
|
Hardened Steel/ Carbon Steel/Cast Iron/ Stainless steel
|
||
|
Application
|
Side Face/ Step Shoulder/ Straight Slot /Deep Slot
|
||
|
Sample
|
Yes
|
Type
|
Flattened
|
|
Stock
|
Yes
|
Raw Material
|
WF25
|
|
OEM/ODM
|
Yes
|
Grain of Powder
|
0.4μm
|
|
Tolerance
|
±0.01
|
Helix Angle
|
35°
|
|
Flutes
|
2F
|
Coating
|
nACo 3 Black
|
|
HRC
|
HRC60
|
Coating Color
|
Black
|
Raw Material
Super material is the basis of the tools. We choose the high performance material with good wear-resistance, high hardeness and high toughness.
| Grade |
Density g/cm3 |
Hardness HRA |
Co Content % |
Grain Size um |
Bending Strength N/mm2 |
| YG10X | 14.5 | 91.5 | 10 | 0.8 | 2800 |
| ZK30UF | 14.5 | 92.0 | 10 | 0.6 | 3000 |
| GU25UF | 14.5 | 93.0 | 12 | 0.4 | 4000 |
Excellent Coating
Good coating can inprove tools life and production effiency, as well as slove the cutting problems.
| Coatings |
Hardness HV |
Thickness um |
Friction Coefficient | Oxidation Temp | Color |
| AlTiN | 3500 | 2.5-3 | 0.3 | 900 | Black |
| TiAlN | 2800 | 2.5-3 | 0.3 | 900 | Violet |
| TiSiN | 3600 | 3 | 0.45 | 1000 | Copper |
| AlTiSiN | 400 | 3 | 0.4 | 1200 | Blue |
| TiN | 2500 | 2-3 | 0.5 | 600 | Gold |
