Home > products > Micro End Mills > 2 Flutes Micro Grain Milling Cutter 0.2-0.9mm Square/Ball Nose

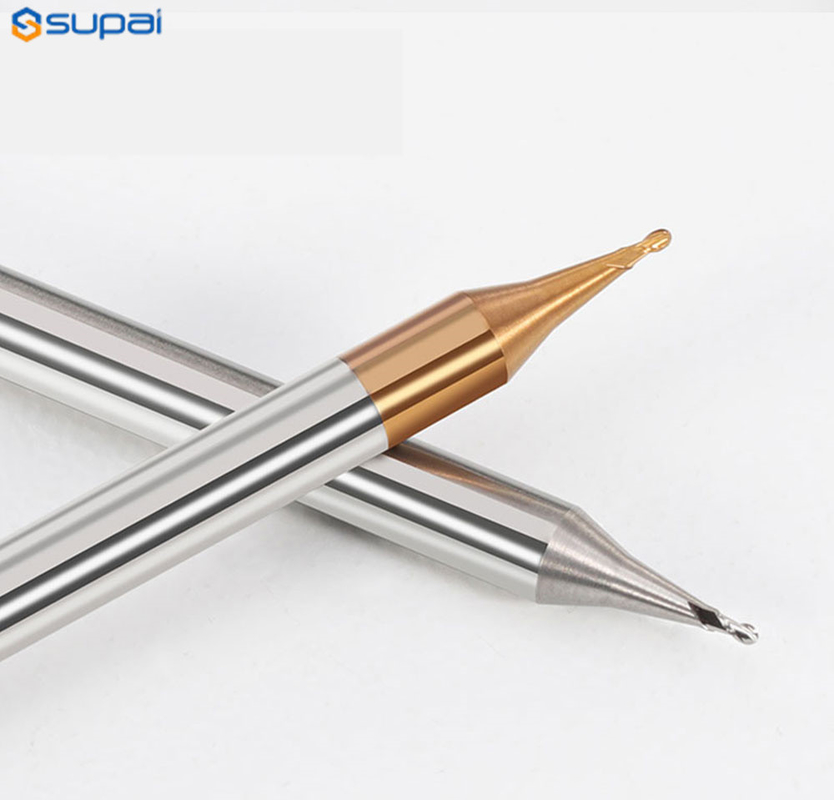

2 Flutes Micro Grain Milling Cutter 0.2-0.9mm Square/Ball Nose

Product Details

Place of Origin: Changzhou,Jiangsu,China

Brand Name: SUPAL

Model Number: Micro Diameter

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: To be negotiated

Packaging Details: One plastic pipe pack one piece, 10 pieces per group

Delivery Time: 7-15days

Payment Terms: T/T

Supply Ability: 100000000000PCS

Get Best Price
Highlight:

0.2mm Micro End Mills

,

Ball Nose Micro End Mills

,

2 Flutes Micro Grain Milling Cutter

Coating:
TiAlN
Shank Diameter:
4mm
Helix Angle:
30°
Cutting Edge Type:
Square/Ball Nose
Application:
Brass,Gold
Cutting Diameter:
0.2-0.9mm
Number Of Teeth:
2
Product Name:
Micro End Mills
Coating:
TiAlN
Shank Diameter:
4mm
Helix Angle:
30°
Cutting Edge Type:
Square/Ball Nose
Application:
Brass,Gold
Cutting Diameter:
0.2-0.9mm
Number Of Teeth:
2
Product Name:
Micro End Mills
2 Flutes Micro Grain Milling Cutter 0.2-0.9mm Square/Ball Nose

Product Description:

Micro End Mills are 1/4" solid micro carbide 4 flute carbide end mill, designed with a 30° helix angle and a 4mm shank diameter. It is the perfect tool for applications involving brass and gold. It features a short flute length and mini flat end mills, providing an efficient and precise cutting performance.



Features:

Using carbide micro diameter end mills offers several advantages compared to other types of end mills.

Precision and Accuracy: Carbide micro diameter end mills are specifically designed for high-precision machining applications. Their small diameter allows for intricate and detailed cuts, providing excellent precision and accuracy in producing fine features and tight tolerances.

Rigidity: Carbide is a rigid and durable material, which translates into reduced tool deflection during machining. This rigidity helps maintain dimensional accuracy and improves surface finish, especially when working with delicate or thin-walled workpieces.

Wear Resistance: Carbide end mills possess exceptional wear resistance due to the hardness of the tungsten carbide particles in the composite material. This wear resistance allows the end mills to maintain their cutting edge sharpness and performance over extended periods of use, resulting in longer tool life.

Heat Resistance: Carbide micro diameter end mills exhibit excellent heat resistance, enabling them to withstand high cutting speeds and temperatures generated during machining. This characteristic is crucial for achieving efficient material removal rates and preventing premature tool failure due to thermal damage.

Versatility: Carbide micro diameter end mills are versatile tools suitable for a wide range of materials, including metals, plastics, composites, and even some ceramics. They can effectively machine different materials with varying hardness levels, making them suitable for a broad spectrum of machining applications.

High-Speed Machining Capability: The combination of rigidity, wear resistance, and heat resistance of carbide micro diameter end mills enables them to handle high-speed machining operations. This capability helps improve productivity by reducing machining time while maintaining precision and surface finish.

Reduced Machining Forces: Due to their small size, micro diameter end mills generate lower cutting forces compared to larger end mills. This characteristic minimizes the stress on the workpiece and machine tool, reducing the risk of part deformation and improving overall machining stability.

It's important to note that while carbide micro diameter end mills offer numerous advantages, they are best suited for specific applications that require fine details and tight tolerances. For general-purpose machining or roughing operations, larger diameter end mills or different tool types may be more appropriate.



Technical Parameters:

Adjusting Cutting Parameters for Different Materials

When using carbide micro diameter end mills, adjusting cutting parameters is essential to optimize machining performance for different materials. Here are some key cutting parameters to consider when machining specific materials.

Metals

Feed Rate: Generally, a higher feed rate can be used for softer metals like aluminum, while a lower feed rate is suitable for harder metals like stainless steel or titanium.
Spindle Speed: Higher spindle speeds are typically employed for softer metals to increase material removal rates, while lower spindle speeds may be used for harder metals to reduce tool wear and heat generation.
Depth of Cut: The depth of cut depends on the specific application and the stability of the machining setup. It is important to balance material removal rates with tool life and avoid excessive cutting forces.

Plastics

Feed Rate: Plastics can be machined at relatively higher feed rates compared to metals. However, the feed rate should be adjusted based on the specific plastic material and its characteristics, such as hardness and heat sensitivity.
Spindle Speed: Spindle speeds for machining plastics are typically moderate to high to prevent melting or excessive heat buildup. It is important to avoid excessive heat that can lead to material deformation or poor surface finish.
Depth of Cut: Similar to metals, the depth of cut in plastics should be chosen carefully to balance material removal rates and prevent excessive cutting forces that might cause workpiece deformation or tool breakage.

Composites

Feed Rate: Composites like CFRP and FRP have unique machining properties. A lower feed rate is often recommended to prevent delamination or fiber pull-out during machining.
Spindle Speed: Moderate to high spindle speeds are generally used for composites to maintain cutting efficiency and prevent excessive heat buildup.
Depth of Cut: Composites are often machined with shallow depths of cut to minimize the risk of delamination and fiber damage. Multiple passes with increasing depth may be employed for roughing operations.

Ceramics

Feed Rate: Ceramics require lower feed rates compared to metals or plastics due to their high hardness and brittleness. Slow and controlled feed rates are necessary to prevent tool fracture and chipping.
Spindle Speed: Moderate spindle speeds are typically used for ceramic machining. Excessive speeds can lead to tool wear or thermal damage, while too low speeds might result in poor surface finish.
Depth of Cut: Ceramics are typically machined with shallow depths of cut due to their hardness. Multiple passes and proper cooling or lubrication methods are employed to dissipate heat generated during machining.

These parameters serve as general guidelines, and it's important to consider the specific material properties, machine capabilities, and desired machining outcomes. It's recommended to start with conservative cutting parameters and make adjustments based on the actual cutting performance and results achieved.



Applications:

Carbide micro diameter end mills are capable of effectively machining a variety of materials, including:

  • Metals, such as aluminum, stainless steel, tool steel, brass, copper, and titanium
  • Plastics, including acrylic, polycarbonate, PVC, nylon, and ABS
  • Composites, such as carbon fiber reinforced polymers (CFRP) and fiberglass reinforced polymer (FRP)
  • Ceramics like alumina and zirconia
  • Printed circuitboard (PCBs)

It is important to consider the specific properties of each material and adjust cutting parameters accordingly when using carbide micro diameter end mills. Different coatings or geometries on the end mills may also be employed to enhance performance and improve tool life when machining certain materials.



Customization:

Customized Micro End Mills

Brand Name: SUPAL

Model Number: Micro Diameter

Place of Origin: Changzhou,Jiangsu,China

Minimum Order Quantity: 10pcs

Price: To be negotiated

Packaging Details: One plastic pipe pack one piece, 10 pieces per group

Delivery Time: 7-15days

Payment Terms: T/T

Supply Ability: 100000000000PCS

Shank Diameter: 4mm

Material: Carbide

Overall Length: 50mm

Product Name: Micro End Mills

Coating: TiAlN

Keywords: micro grain milling cutter, micro grain milling cutter, 0.1MM-0.9MM High Quality Carbide micro flat end mill for Steel Brass Milling Cutter



Support and Services:

Micro End Mills Technical Support and Service

Our technical support and service team is dedicated to providing reliable and rapid customer service.

We offer technical support for our Micro End Mills products, including installation, troubleshooting, repairs, and maintenance. Our experienced technicians can provide expert advice and practical solutions to your most complex problems.

We also provide product training and education to ensure that our customers have the knowledge and skills to properly operate and maintain their Micro End Mills.

If you have any questions or concerns about our Micro End Mills products or services, please contact us at any time. We look forward to assisting you with your technical support and service needs.



Packing and Shipping:

Packaging and Shipping

Micro End Mills are shipped in protective packaging that is designed to keep the product safe and secure during transit. The product is packaged in a bubble wrap bag, or a box with padding to protect the product against shock and impact. We also utilize special shipping boxes for larger orders.

We use reliable carriers such as FedEx, UPS, and DHL to ensure the timely delivery of your product. We will provide tracking information as soon as your order is shipped so that you can track its progress.
