Product Details
Place of Origin: Changzhou,Jiangsu,China
Brand Name: Supal
Certification: ISO9001
Payment & Shipping Terms
Minimum Order Quantity: 10PCS
Price: To be negotiated
Packaging Details: Single Plastic Tube
Delivery Time: 7-15DAYS
Payment Terms: T/T 100%
Supply Ability: 1000000000PCS/MONTH
Material: |
Tungsten Steel |
Cutting Edge Style: |
Square End |
Number Of Pieces: |
5 |
Cutting Diameter: |
1/4 Inch |
Radius End: |
No |
Overall Length: |
2-1/2 Inch |
Helix Angle: |
35°-45° |
Flute Length: |
1-1/4 Inch |
Material: |
Tungsten Steel |
Cutting Edge Style: |
Square End |
Number Of Pieces: |
5 |
Cutting Diameter: |
1/4 Inch |
Radius End: |
No |
Overall Length: |
2-1/2 Inch |
Helix Angle: |
35°-45° |
Flute Length: |
1-1/4 Inch |
Carbide end mills with three flutes are a popular choice for machining aluminum. The number of flutes, which refer to the number of cutting edges on the end mill, provides a good balance between material removal rate and surface finish.
Material
Carbide end mills are typically made from durable and heat-resistant solid carbide that is well-suited for machining aluminum due to its hardness and high cutting temperature resistance.
Coating
Coatings such as TiCN or TiAlN can be applied to the end mill to enhance performance. These coatings provide increased lubricity and heat resistance, reducing friction and extending tool life, which is particularly beneficial for aluminum machining.
Helix Angle
The helix angle of the end mill, or the angle at which the flutes wrap around the tool, is also important. A higher helix angle (around 45 degrees) is beneficial for aluminum as it helps evacuate chips and provide a better surface finish.
Diameter and Length
The diameter and length of the end mill depend on the specific machining requirements. Smaller diameter end mills are generally used for finer details and features, while larger diameters are more suitable for roughing or heavy material removal.
When selecting a carbide end mill for machining aluminum, you should consider the material, coating, helix angle, diameter, and length before making a decision. It is also helpful to consult with tooling suppliers or manufacturers who can provide recommendations based on your specific needs.
When considering the number of flutes for aluminum machining, several factors should be taken into account.
Material Removal Rate is greatly affected by the number of flutes. End mills with fewer flutes will have larger chip spaces between the flutes, resulting in higher MRR, making two-flute end mills popular for roughing operations.
Surface finish is also impacted by the number of flutes; end mills with more flutes will generally provide smoother finish. This is because the smaller chip spaces between them result in smaller chips being produced, reducing tool marks on the workpiece.
The number of flutes influences the rigidity and stability of the end mill during machining. More flutes distribute cutting forces more evenly across the cutting edges, minimizing vibration and chatter.
Chip evacuation is important in aluminum machining, as chips can be stringy and tend to stick to the cutting tool. Fewer flutes mean larger chip spaces, allowing for improved chip evacuation.
The optimal number of flutes for a situation is determined by the machining requirements. Two-flute end mills are often used for roughing, while three or more flutes are preferred for smoother finish and greater stability of the milling setup.

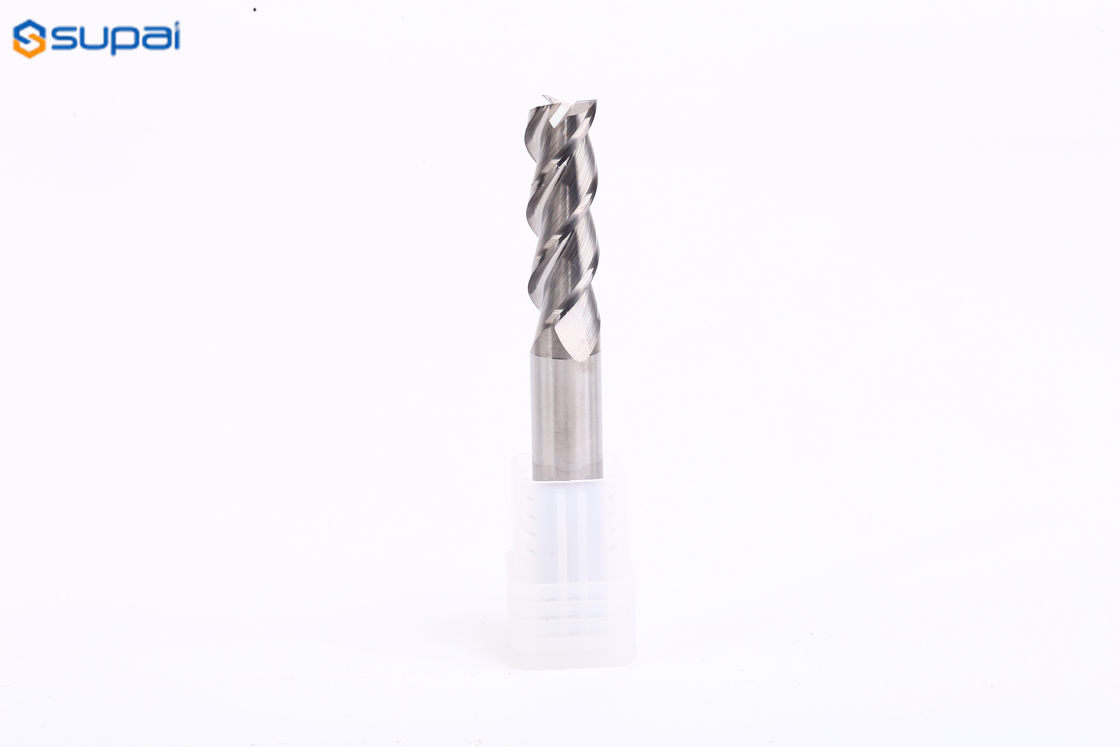

Supal Aluminum End Mill is now available in our store. This product is certified by ISO9001 and comes with a minimum order quantity of 10PCS. It is packed in a single plastic tube, and the delivery time is 7-15DAYS. Payment is accepted via T/T 100%. We can supply up to 1000000000PCS/MONTH. This type of end mill has 5 pieces, with a cutting edge style of square end and a shank diameter of 1/4 inch. The flute length is 1-1/4 inch. If you are looking for carbide inserts for sale or 3/8 inch 3flute end mill for aluminum, then this is the perfect product for you. Contact us to get more information and negotiate the price.
Our team of experienced professionals is here to provide comprehensive technical support and service for our aluminum end mills. We provide the following services:
We are committed to providing superior service and support to ensure your aluminum end mills are running smoothly and efficiently.
The Aluminum End Mill comes packed in an individual box sealed with shrink wrap. Boxes are then placed in a corrugated cardboard box for shipping. The cardboard box should be marked, "Fragile, Handle with Care" and "Fragile, This Side Up". The box should be filled with packing material to protect the Aluminum End Mill from shifting and breaking during transit.
