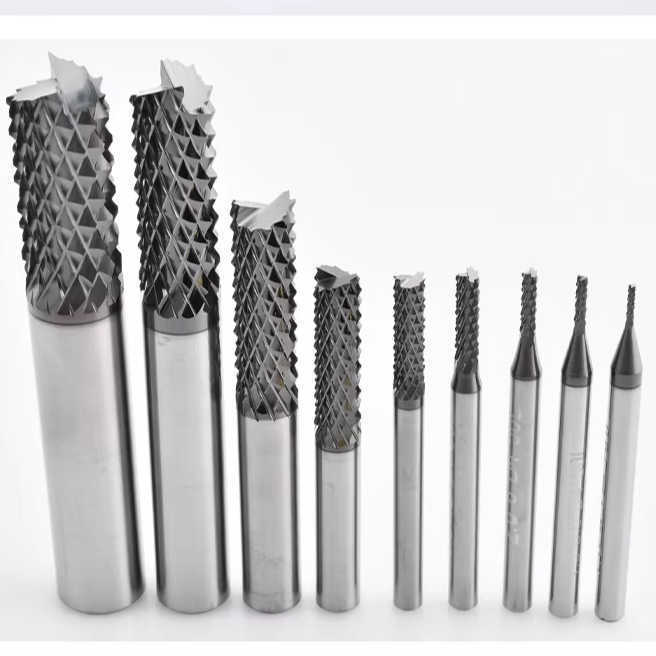

Custom End Mills Customized Solutions for Superior Machining Performance

Product Description:

Carbide end mills for wood are crafted from a composite of carbide, often tungsten carbide, and a metal matrix binder. This composition endows them with remarkable hardness and heat resistance. These end mills are designed to be used in milling machines or CNC machining centers for woodworking applications. Their high hardness enables them to cut through various types of wood, such as hardwoods and softwoods, as well as wood - based materials like MDF (Medium - Density Fiberboard), plywood, and particleboard with precision. The heat resistance property allows for high - speed cutting, reducing processing time and increasing productivity. They come in different flute configurations, lengths, and diameters to suit various milling operations, including slotting, profiling, and contouring.

Single flute end mills are engineered for applications demanding rapid and high - volume material removal. Their most distinctive feature is the single cutting edge. This unique design creates ample space for chip evacuation. As a result, they can operate at faster feed rates and handle higher chip loads compared to conventional multi - flute tools. Single flute end mills are highly versatile and excel in roughing operations. They are well - suited for machining non - ferrous materials such as aluminum, brass, plastics, exotic composites, and soft metals. However, they are not recommended for use with steel. These long - life tools are typically made from micro - grain carbide, which contributes to their durability. They are available in a variety of cutting diameters, lengths, shank diameters, and geometries to meet the requirements of different specialty applications.

Compression end mills for wood are specialized tools designed to address specific challenges in wood and wood - derivative machining. They are typically used for materials like MDF, melamine chipboard, plywood, and other wood - based panels. These end mills have a unique design that combines both up - cut and down - cut features. During the cutting process, the top part of the tool exerts a downward force on the workpiece, while the bottom part exerts an upward force. This dual - action helps to minimize splintering and delamination, especially when working with materials that are prone to such issues, like panels with surface layers. Compression end mills are ideal for milling, grooving, and contouring operations. They can be made from solid carbide or have brazed hard metal plates, and some are coated to enhance their wear resistance, allowing for optimal productivity in high - feed machining on CNC nesting machines.

Two - flutes spiral flutes end mills for wood are popular choices for many woodworking tasks. The spiral flute design offers several advantages. As the tool rotates, the spiral flutes gradually engage with the wood, resulting in a smoother cutting action. This reduces vibration and noise during operation. These end mills can be further classified into up - cut and down - cut types. Up - cut 2 - flutes spiral end mills are used for upward chip evacuation. They are excellent for achieving a clean finish on the bottom side of the workpiece. The shearing action of the up - cut design yields an accurate cut, and the augering effect helps to clear chips from the cut, reducing heat build - up, preventing tool breakage, and extending the tool's lifespan. They are perfect for creating grooves, slots, and dados in hardwood, softwood, MDF, plywood, and particleboard. Down - cut 2 - flutes spiral end mills, on the other hand, are suitable for applications where a clean finish on the top surface of the workpiece is required, such as when working on the visible sides of furniture components.

Features:

Within the TM series of solid carbide end mills, square end mills are featured with 2 flutes, a blade diameter ranging from D1 to D25, an edge length of 3-40, a shank diameter of D4-D25, and an overall length of 50-200. These end mills are predominantly used for slotting, profiling, and contouring in woodworking applications, capable of processing various woods and wood-based materials.

Also part of the TM series, ball nose end mills come with 2 flutes, a blade diameter of D1-D25, a nose arc radius of R0.5-R12.5, an edge length of 2-30, a shank diameter of D4-D25, and an overall length of 50-200. They are well-suited for curved surface machining in woodworking tasks, such as creating decorative patterns on furniture.

In the TM series, corner radius end mills are equipped with 2 flutes, a blade diameter of D1-D25, a nose arc radius of R0.2-R3, an edge length of 3-30, a shank diameter of D4-D12, and an overall length of 50-100. These end mills are commonly utilized for machining rounded corners and fillets in wood components to enhance appearance quality and safety.

Compression end mills feature a unique design combining up-cut and down-cut characteristics. Some are crafted from solid carbide or have brazed hard metal plates, with coatings to improve wear resistance. They are ideal for milling, grooving, and contouring operations on materials like MDF, melamine chipboard, and plywood to minimize splintering and delamination.

Various types of mortising and tenoning end mills, including Huxi, T-shaped, and set-tooth variations, are primarily used for mortising and tenoning processes on solid wood or artificial boards. They are suitable for creating various shapes of mortising and tenoning joints for cabinets, door frames, floors, and other woodworking applications.

The hallmark of single flute end mills is their single cutting edge, allowing efficient chip evacuation. For instance, single-flute end mills made from micro-grain carbide are highly versatile, excelling in roughing operations. They are suitable for machining non-ferrous materials like aluminum, brass, plastics, soft metals, and some woods.

Technical Parameters:

Choosing the right carbide end mill for wood depends on several key factors related to your specific woodworking project, material, and machining requirements. Here’s a step-by-step guide to help you make an informed decision:

1. Consider the Wood Material
Solid wood (hardwoods/softwoods): For hardwoods (e.g., oak, maple) or dense woods, opt for end mills with sharp cutting edges and strong carbide grades to withstand high cutting forces. Spiral flutes (2-flute designs) work well for smooth cuts and reduced splintering.

Engineered wood (plywood, MDF, melamine): These materials are prone to splintering or delamination. Compression end mills are ideal here—their combined up-cut/down-cut design presses the material surface during cutting, leaving clean top and bottom edges.

Softwoods (pine, cedar): Single-flute or 2-flute spiral end mills are efficient, as they handle high chip loads and ensure fast chip evacuation to prevent clogging.

2. Flute Configuration
Single-flute: Best for high-speed, high-volume material removal. The large flute space allows excellent chip evacuation, making them suitable for softwoods, plastics, or roughing cuts where speed matters more than a polished finish.

2-flute spiral: Versatile for most woodworking tasks. The spiral design reduces vibration, ensures smoother cuts, and balances chip removal with cutting stability. Ideal for profiling, slotting, or general milling in both solid wood and composites.

Compression (multi-flute hybrid): Specifically designed for layered materials. The lower section uses up-cut flutes (pulling chips upward), while the upper section uses down-cut flutes (pushing chips downward), eliminating splinters on both surfaces.

3. Cutting Direction
Up-cut: Pulls chips upward and away from the cut, leaving a clean finish on the bottom of the workpiece. Good for through-cuts or when the top surface isn’t visible.

Down-cut: Pushes chips downward, resulting in a clean top surface. Useful for visible edges (e.g., furniture fronts) but may cause chip clogging in deep cuts.

Compression: Combines both directions to clean both surfaces—essential for laminated or veneered materials.

4. Shank Size and Length
Shank diameter: Match the shank size to your machine’s collet (e.g., ¼", ⅜", ½") for secure gripping and minimal vibration. Larger shanks (½") offer more stability for heavy cuts.

Cutting length: Choose a length slightly longer than the material thickness to avoid over-exposing the tool, which can cause deflection. For deep slots or thick stock, opt for extended-length end mills.

5. Carbide Grade and Coating
Carbide grade: For wood, a fine-grain carbide (e.g., WC-Co alloys) balances hardness and toughness, resisting chipping in abrasive woods.

Coatings: Titanium nitride (TiN) or diamond-like carbon (DLC) coatings reduce friction, prevent resin buildup (common in MDF or plywood), and extend tool life—especially useful for high-volume production.

6. Machine Compatibility
Ensure the end mill is rated for your machine’s spindle speed (RPM) and power. High-speed CNC routers handle single-flute or small-diameter tools well, while larger machines can accommodate heavier 2-flute or compression end mills.

7. Finish Requirements
For roughing (quick material removal), prioritize single-flute or 2-flute up-cut tools.

For fine finishes (e.g., visible furniture parts), use compression end mills (for composites) or down-cut 2-flute spirals (for solid wood).

Applications:

Shaping and Profiling: Used to create intricate edges, curves, and decorative profiles on furniture components like table tops, chair legs, cabinet doors, and drawer fronts. 2-flute spiral end mills excel here, delivering smooth finishes on solid wood (e.g., oak, walnut) and veneered panels.

Joinery Work: Ideal for cutting mortises, tenons, dados, and rabbets—critical for assembling frames, shelves, and cabinet carcasses. Compression end mills ensure clean, splinter-free joints in plywood or MDF, preventing weak points in the structure.

Cutting Slots and Grooves: Single-flute or 2-flute up-cut end mills efficiently cut slots for hinges, drawer slides, or cable management in cabinet sides and backs. Their strong chip evacuation prevents clogging in particleboard or melamine-coated panels.

Edge Banding Trimming: Carbide end mills with fine flutes (often 2-flute or compression designs) trim excess edge banding on cabinets, ensuring a seamless, flush finish without damaging the laminate or wood surface.

Framing and Structural Cuts: Used in CNC routers or milling machines to cut precise notches, angles, or channels in lumber for roof trusses, floor joists, or wall framing. Their hardness withstands the rigors of processing rough-sawn hardwoods or softwoods like pine.

Door and Window Manufacturing: Shaping door panels, window frames, and sashes. Compression end mills are particularly useful for processing glazed panels or composite door skins, where splinter-free edges are essential for aesthetics and weather resistance.

Carving and Engraving: Ball-nose or small-diameter carbide end mills create detailed patterns, letters, or relief carvings on wooden signs, decorative plaques, or art pieces. Their precision allows for intricate designs on both softwoods (e.g., cedar) and hardwoods (e.g., mahogany).

Toy Making: Used to cut smooth, burr-free shapes for wooden toys. 2-flute spiral end mills ensure safe, rounded edges, while single-flute designs speed up bulk material removal for larger toy components.

MDF and Particleboard Machining: Carbide end mills resist wear from the abrasive binders in these materials. Compression end mills prevent surface tearing when cutting MDF for shelving or furniture, while single-flute tools handle high-volume roughing in production lines.

Plywood and Laminates: Critical for cutting plywood sheets into cabinet parts or flooring. The up-cut/down-cut action of compression end mills eliminates delamination and splintering on both faces, preserving the integrity of veneers or laminates.

Mass Production Lines: In automated CNC systems, carbide end mills (often with coatings for extended life) perform repetitive cuts on wood components for furniture, packaging, or pallets. Their high-speed capabilities and durability reduce downtime for tool changes.

Custom Molding: Producing trim, baseboards, or crown molding with complex profiles. Spiral-flute designs ensure consistent, smooth cuts along the length of the material, even in dense hardwoods like maple.

Customization:

Product Customization Services for Custom End Mills:

Brand Name: ODM/OEM

Model Number: CUSTOM

Place of Origin: Changzhou, Jiangsu, China

Certification: ISO9001

Minimum Order Quantity: 5PCS

Price: To Be Negotiated

Packaging Details: Single Plastic Tube

Delivery Time: 7-15 Days

Payment Terms: T/T, Paypal, Alipay

Supply Ability: 100000000000PCS

Packaging: One Plastic Pipe Pack One Piece, 10 Pieces Per Group

Helix Angle: 35/38/45/55

Workpiece: Carbon Steels Alloy Steels

Overall Length: Customized

Keywords: cnc machining, customized cutter, metal working

Support and Services:

Our Product Technical Support and Services for Custom End Mills include:

- Custom end mill design consultation

- Assistance with material selection

- Troubleshooting and recommendations for optimal performance

- Technical documentation and resources

- Training and support on end mill usage

Packing and Shipping:

Product Packaging:

Our custom end mills are carefully packaged to ensure they arrive in top condition. Each end mill is placed in a protective plastic case to prevent any damage during transit. The cases are then packed in sturdy cardboard boxes with ample cushioning to further protect the end mills from any impact.

Shipping:

We offer worldwide shipping for our custom end mills. Orders are processed and shipped within 1-2 business days. Customers can choose their preferred shipping method during checkout, with options for standard or expedited shipping. All shipments are tracked, and customers will receive a tracking number to monitor the delivery status of their order.

FAQ:

Q: What is the brand name of the Custom End Mills?

A: The brand name is ODM/OEM.

Q: What is the model number of the Custom End Mills?

A: The model number is CUSTOM.

Q: Where is the Custom End Mills manufactured?

A: The Custom End Mills are manufactured in Changzhou, Jiangsu, China.

Q: What certification does the Custom End Mills have?

A: The Custom End Mills are ISO9001 certified.

Q: What is the minimum order quantity for the Custom End Mills?

A: The minimum order quantity is 5PCS.
