Product Details
Place of Origin: Changzhou,Jiangsu,China
Brand Name: SUPAL
Model Number: OEM
Payment & Shipping Terms
Minimum Order Quantity: 5PCS
Price: To be negotiated
Packaging Details: 1.One piece in a platic pipe, 10 pieces per group. 2.Use the air bubble paper to encase the plastic pipe. 3.Put the goods encased with air bubble paper in the carton. 4.Other packing will be accept according to your needs.
Delivery Time: 7-15Days
Payment Terms: T/T
Supply Ability: 10000000PCS
Item: |
Carbide Round Rod |
Material: |
Tungsten Steel |
Dimensions: |
1-30 |
Length: |
20-330 |
Boiling Point: |
5927 |
Brand: |
Supal |
Item: |
Carbide Round Rod |
Material: |
Tungsten Steel |
Dimensions: |
1-30 |
Length: |
20-330 |
Boiling Point: |
5927 |
Brand: |
Supal |

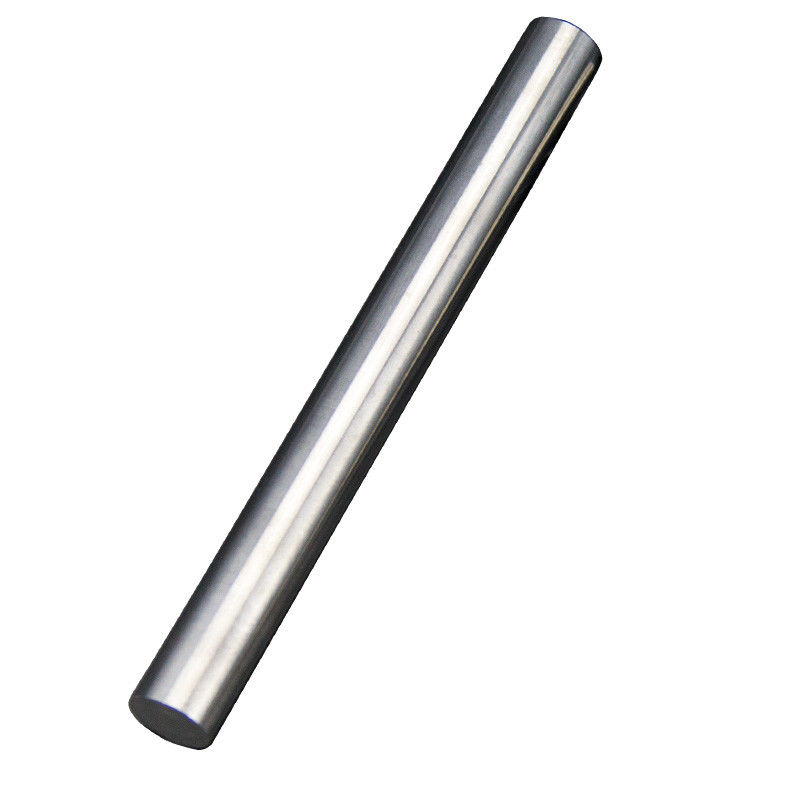

Top Grade high quality Tungsten Carbide Solid Round Rod high purity ground polished 99.95% pure forged tungsten rods
Feature of Sell pure tungsten rod/pole
1. High melting point.
2. High density.
3. Favourable high temperature property.
4. Long service time.
more than 10 years professional experience
direct manufcturer, no middleman difference
offer best factory bottom buly buy price
custom design, top class in time service
Dimensions and tolerance
(According to clients’ requirements):
| Tungsten Physical Properties | ||
| Density | lb/in3 | 0.70 |
| gm/cm3 | 19.27 | |
| Melting Point | °F | 6170 |
| °C | 3410 | |
| Thermal Conductivity | Cal/cm2/cm°C/sec | 0.48 |
| Specific Heat | Cal/gm/°C | 0.032 |
| Coefficient of Linear Thermal Expansion | micro-in/°F x 10-6 | 4.30 |
| micro-in/°C x 10-6 | 2.40 | |
| Electrical Resistivity | micro-ohm-cm | 5.50 |
| Tungsten Mechanical Properties | ||
| Tensile Strength | KSI (Mpa)-RT | 250 (1725) |
| KSI (Mpa)-500°C | 150 (1035) | |
| KSI (Mpa)-1000°C | 75 (515) | |
| Elongation | % in 1.0". | -- |
| Hardness | DPH | 300 |
| Modules of Elasticity | KSI | 58000 |
| Gpa | 400 | |
Application:
Our products are used in aerospace industry ,chemical equipment industry ,medical industry and civilian industry. We have strict quality control system and provide professional service to our customers around the world.
