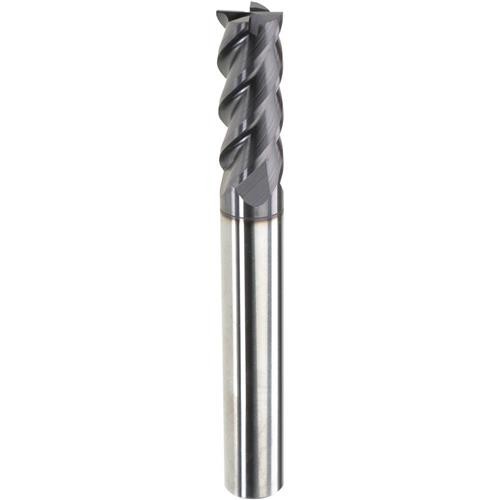

AITiN Coating Carbide End Mill 3/8" 4 Flute General High Speed Cutting

AITiN Coating Carbide End Mill 3/8"  4 Flute General High Speed Cutting
AITiN Coating Carbide End Mill 3/8"  4 Flute General High Speed Cutting AITiN Coating Carbide End Mill 3/8"  4 Flute General High Speed Cutting

Large Image :  AITiN Coating Carbide End Mill 3/8" 4 Flute General High Speed Cutting

Product Details:
Place of Origin: Changzhou,Jiangsu,China
Brand Name: SUPAL
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Price: To be negotiated
Packaging Details: 1.One piece in a platic pipe, 10 pieces per group. 2.Use the air bubble paper to encase the plastic pipe. 3.Put the goods encased with air bubble paper in the carton. 4.Other packing will be accept according to your needs.
Delivery Time: 7-15Days
Payment Terms: T/T
Supply Ability: 10000000PCS
Detailed Product Description
Type: End Mill Precision: High Precision
Usage: General High Speed Cutting Diameter: 1-20mm
Material: Carbide Flute: 4flutes
High Light:

solid carbide tapered end mills

,

flat countersink drill bit

These Super Carbide End Mills are for cutting carbon steel, tool steel, alloy steel, stainless steel, titanium and cast iron.

4 flute3/8" cutting diameter3/8" shank diameter15/16" cutting length3" overall length

Solid carbide end mills offer unmatched cutting performance, long tool life and excellent process safety in demanding parts for aerospace, medical, mold, power generation and other industries.
The high quality, low cost advantages of these end mills are directly derived from the special die carbide structure of the end mill, optimized blade length, specialized edge grinding and wear resistant coatings.



Material : 45hrc/55hrc/60hrc/65hrc
Suitable for processing alloy,copper,common mould steel. With Tisin Copper coating

HRC Grade Density Hardness Co Content Grain Size Bending Strength
g/cm3 HRA % um N/mm2
45 HRC YG10X 14.5 91.5 10 0.8 2800
55 HRC ZK30UF 14.5 92 10 0.6 3000
65 HRC GU25UF 14.5 93 12 0.4 4000

Features

  • Solid Carbide
  • Standard and High Performance Offerings
  • Typically 2-5 Flutes
  • Square, Ball, Radius or Chamfer Cutting Ends
  • Standard, Stub, Extra Long or Long Reach Designs
  • Metric and Inch Based Tools
  • Various Coatings Available

AITiN Coating Carbide End Mill 3/8"  4 Flute General High Speed Cutting 0

AITiN Coating Carbide End Mill 3/8"  4 Flute General High Speed Cutting 1











AITiN Coating Carbide End Mill 3/8"  4 Flute General High Speed Cutting 2
