Supal (Changzhou) Precision Tools Co.,Ltd Art of Cutting
| Place of Origin: | Changzhou,Jiangsu,China |
|---|---|
| Brand Name: | SUPAL |
| Model Number: | OEM |
| Minimum Order Quantity: | 5PCS |
| Price: | To be negotiated |
| Packaging Details: | 1.One piece in a platic pipe, 10 pieces per group. 2.Use the air bubble paper to encase the plastic pipe. 3.Put the goods encased with air bubble paper in the carton. 4.Other packing will be accept according to your needs. |
| Delivery Time: | 7-15Days |
| Payment Terms: | T/T |
| Supply Ability: | 10000000PCS |

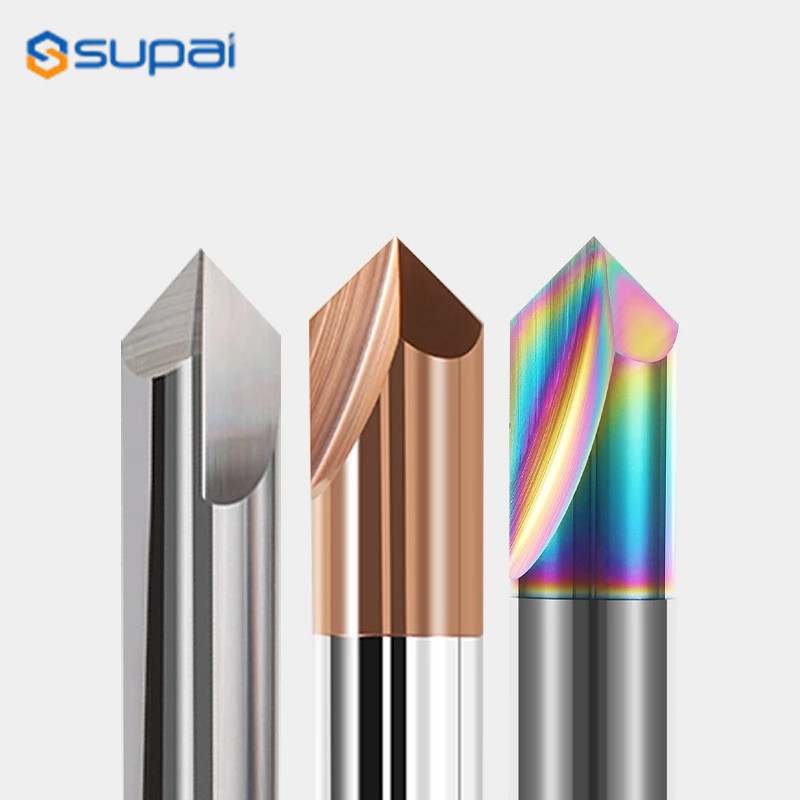

| Product Name: | Chamfer End Mill | Material: | Carbide |
|---|---|---|---|
| Degree: | 45/60/90/120 | Diameter: | 1-12mm |
| Overall Length: | 50-100mm | HRC: | 45/55/60 |
| High Light: | solid carbide roughing end mills,flat countersink drill bit |
||
Product Parameters
| HRC | HRC45/55/60/65 |
| Coating Type | ALTIN /TIALN /TISIN /NACO /DLC /Diamond |
| OEM | √ |
| Suitable For | All Kinds Matel Plastic Wood Acrylic and so on |
Super Raw Material
| Item | HRC50 | HRC55 | HRC60 | HRC65 |
| Grade | YG10X | YL10.2 & WF25 | Germany K44 &K40 | H10F |
| Details |
Grain size 0.7um, Co10%, Flexural strength 3320N/mm2 |
Grain size 0.6um, Co10%, Flexural strength 4000N/mm2 |
Grain size 0.5um, Co12%, Flexural strength 4300N/mm2 |
Grain size 0.5um, Co10%, Flexural strength 4300N/mm2 |
Super Coating
| Coating Classifying and Advantage | |||||
| Item | Coating Type | AlTin | TiAlN | TiSiN | Naco |
| Characteristic | Hardness(HV) | 3300 | 2800 | 4300 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 | |
| Oxidation Temp.(°C) | 900 | 800 | 1000 | 1200 | |
| Friction Coefficient | 0.35 | 0.3 | 0.25 | 0.4 | |
| Color | Black | Dark Purple | Copper | Blue | |
| Advantages | High heat stability |
Normally cutting |
Suitable for heavy cutting, and high hardness cutting |
For high precision Cutting |
|
|
Suitable for high speed, dry cutting |
Suitable for cutting mould steel, stainless steel |
Suitable for high hardness cutting, mould steel processing |
|||
|
Most suitable for carbide cutting tools, turning insert |
|||||
