Product Details
Place of Origin: Changzhou,Jiangsu,China
Brand Name: SUPAL
Model Number: OEM
Payment & Shipping Terms
Minimum Order Quantity: 5PCS
Price: To be negotiated
Packaging Details: 1.One piece in a platic pipe, 10 pieces per group. 2.Use the air bubble paper to encase the plastic pipe. 3.Put the goods encased with air bubble paper in the carton. 4.Other packing will be accept according to your needs.
Delivery Time: 7-15Days
Payment Terms: T/T
Supply Ability: 10000000PCS
Product Name: |
Ball Nose End Mill |
Flute: |
2/4 |
Hrc: |
45/50/55/58/60/65/70 |
Coating: |
Coated |
H.S.Code: |
8207709000 |
Material: |
Tungsten Steel |
Product Name: |
Ball Nose End Mill |
Flute: |
2/4 |
Hrc: |
45/50/55/58/60/65/70 |
Coating: |
Coated |
H.S.Code: |
8207709000 |
Material: |
Tungsten Steel |

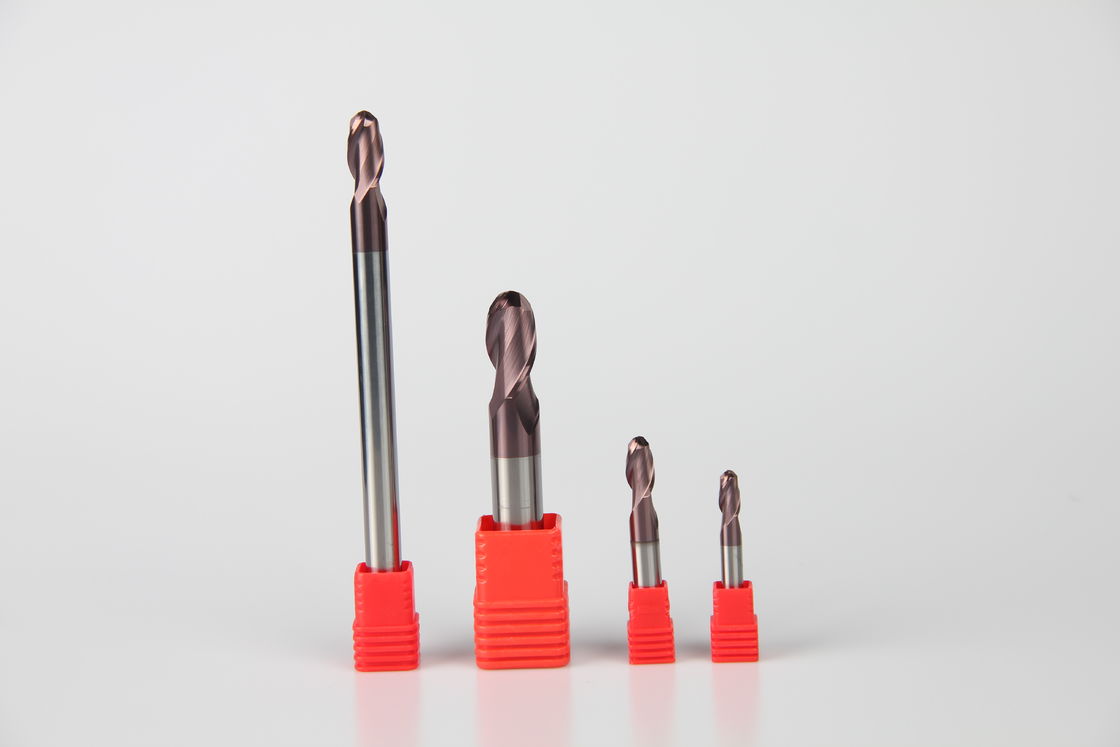

Carbide Long Neck Ball Nose End Mills 50hrc 55hrc 2Flutes 6mm 8mm 10mm Milling Cutter CNC Tools
HRC55 2Flutes Ball Nose End Mills
1.HRC55 grade :Super fine grain size:0.5um,Wc:89%,Co:11%, TRS:4000n/mm
2.Flutes:2Flutes
3.Helix:30 degree
4.Coating:TiSiN ,Copper color
5.Work Piece: Carbon steel, alloy steel, cast steel, tooling steel, mould steel, heat-treatment steel. Aluminum alloy steel, cast iron ,Non ferrous alloy, metal , plastic and other materials
6.Specification:
|
R0.75×3×4D×75L×2T |
1.5 |
4 |
3 |
75 |
|
R1.0×4×4D×75L×2T |
2 |
4 |
4 |
75 |
|
R1.25×5×4D×75L×2T |
2.5 |
4 |
5 |
75 |
|
R1.5×6×4D×75L×2T |
3 |
4 |
6 |
75 |
|
R1.75×7×4D×75L×2T |
3.5 |
4 |
7 |
75 |
|
R2.0×8×4D×75L×2T |
4 |
4 |
8 |
75 |
|
R2.5×10×6D×75L×2T |
5 |
6 |
10 |
75 |
|
R2.5×10×6D×100L×2T |
5 |
6 |
10 |
100 |
|
R3.0×12×6D×75L×2T |
6 |
6 |
12 |
75 |
|
R3.0×12×6D×100L×2T |
6 |
6 |
12 |
100 |
|
R3.0×12×6D×150L×2T |
6 |
6 |
12 |
150 |
|
R4.0×16×8D×75L×2T |
8 |
8 |
16 |
75 |
|
R4.0×16×8D×100L×2T |
8 |
8 |
16 |
100 |
|
R4.0×16×8D×150L×2T |
8 |
8 |
16 |
150 |
|
R5.0×20×10D×100L×2T |
10 |
10 |
20 |
100 |
|
R5.0×20×10D×150L×2T |
10 |
10 |
20 |
150 |
|
R6.0×24×12D×100L×2T |
12 |
12 |
24 |
100 |
|
R6.0×24×12D×150L×2T |
12 |
12 |
24 |
150 |
|
R7.0×28×14D×150L×2T |
14 |
14 |
28 |
150 |
|
R8.0×32×16D×150L×2T |
16 |
16 |
32 |
150 |
|
R10×40×20D×150L×2T |
20 |
20 |
40 |
150 |
