Product Details
Place of Origin: Changzhou,Jiangsu,China
Brand Name: SUPAL
Model Number: OEM
Payment & Shipping Terms
Minimum Order Quantity: 5PCS
Price: To be negotiated
Packaging Details: 1.One piece in a platic pipe, 10 pieces per group. 2.Use the air bubble paper to encase the plastic pipe. 3.Put the goods encased with air bubble paper in the carton. 4.Other packing will be accept according to your needs.
Delivery Time: 7-15Days
Payment Terms: T/T
Supply Ability: 10000000PCS
Type: |
Roughing End Mill |
Coating: |
TiAIN, Altin/Tialn/Tin/Tisin/Nano |
Suitable For: |
Carbon Steel,Cooper.Cast Iron.Carbon Steel.Mould Steel |
Processing Type: |
Metal Cutting Tools |
Usage: |
Cutting Machine |
Controlling Mode: |
CNC Tooling System |
Type: |
Roughing End Mill |
Coating: |
TiAIN, Altin/Tialn/Tin/Tisin/Nano |
Suitable For: |
Carbon Steel,Cooper.Cast Iron.Carbon Steel.Mould Steel |
Processing Type: |
Metal Cutting Tools |
Usage: |
Cutting Machine |
Controlling Mode: |
CNC Tooling System |

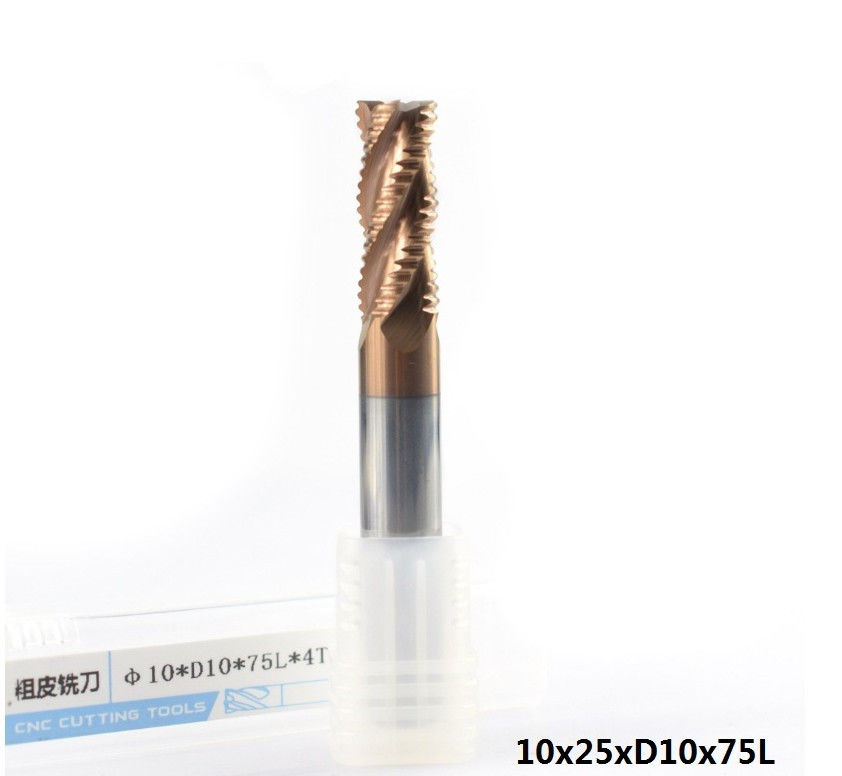

10mm Shank 4 Flute Carbide End Mill 45 Degrees TICN Coated Roughing End Mill CNC Milling Cutter
Features:
1. Suitable for roughing cuts in softwood, hardwood and man made board
2. Carbide for maximum durability in abrasive material.
3. Up-cut spiral for optimum chip flow and improved finish on bottom of board
4. For use in routers and machining centers with CNC control.
We also have other sizes, if you want customized sizes please feel free to contact us. Thanks
| Diameter (mm) | Overall length (mm) | Material |
| 4 | 50 | alloy |
| 6 | 50 | alloy |
| 8 | 60 | alloy |
| 10 | 75 | alloy |
| 12 | 75 | alloy |
| 14 | 100 | alloy |
| 16 | 100 | alloy |
| 18 | 100 | alloy |
| 20 | 100 | alloy |
Why do you choose our products?
1) Selected Material
| HRC45 | HRC55 | HRC60 | HRC65 |
| YG10X | YG10.2&WF25(Taiwan) | K44&K40(Germany) | H10F(Sweden) |
| Grain size: 0.7um | Grain size: 0.6um | Grain size: 0.5um | Grain size: 0.5um |
| Co: 10% | Co: 10% | Co: 12% | Co: 10% |
| Flexural strength: 3320N/mm² | Flexural strength: 4000N/mm² | Flexural strength: 4300N/mm² | Flexural strength: 4300N/mm² |
2) Unique Coating
| Item | AlTiN | TiAIN | TiSiN | nACo |
| Hardness (HV) | 3200 | 2800 | 3600 | 42 (GPA) |
| Thickness (UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp (°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
Packing
