Product Name: | Chamfer End Mill | Material: | 100% New Material |
---|---|---|---|
Coating: | AlTiN, TiAIN, TiCN, Tin, DLC | HRC: | 45/55/60/65 |
Suitable For: | Cast Iron,Carbon Steel,Aluminum,Copper | ||
High Light: | 30 Degree Chamfer End Mill,4 Flute Carbide Chamfer Mill,Solid Steel Chamfer Milling Cutter |

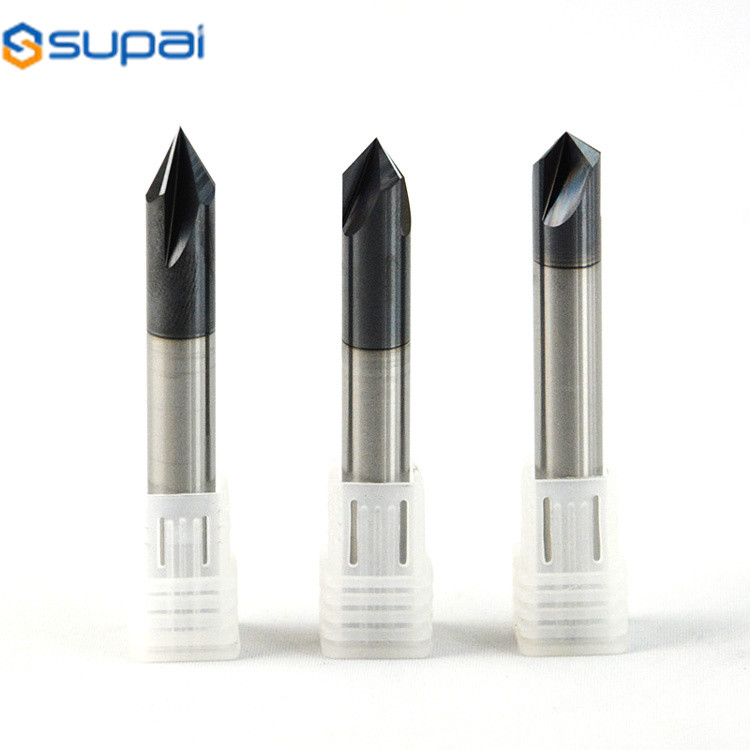

90/60/45 /30 Degree Solid Carbide 4 Flute Chamfer End Mill For Steel
1. Product Name: Solid Carbide Endmill CNC Cutter Tool For Metal
2. Standard size: 4mm,6mm,8mm,10mm,12mm,14mm,16mm,18mm,20mm
3. Advantages: High Precision,Good Surface & Performace
4. Certification: ISO9001:2015 , Supplier Assessment Certificate
Product Name | Carbide Milling Cutters With Coating Dlc | |
Material | Tungsten Carbide,Solid Carbide,Cemented Carbide | |
HRC | 45/55/58/60/65/70 | |
Product Type | Solid Carbide End Mills | |
Coating | Altin, Tialn, Tisin, Tin, DLC,Nano, Diamond | |
Helix Angle | 10degree,15degree,25degree,35degree,45degree,55degree | |
Size | Metric & Inch Size Based On Your Requirement | |
Tolerance | h6 | |
Suitable For | Steel, Stainless Steel, Die Steel, Mould Steel, Carbon Steel, Cast Iron, Copper, etc. |
D(Dia. of cut) | Included Angle | L1(Length of Cut) | D1(Shank Dia.) | L(Overall Length) |
1 | 90 | 2 | 4 | 50 |
2 | 90 | 4 | 4 | 50 |
3 | 60/90/120 | 6 | 4 | 50 |
3 | 60/90/120 | 6 | 3 | 50 |
4 | 60/90/120 | 8 | 4 | 50 |
5 | 60/90/120 | 10 | 5 | 50 |
6 | 60/90/120 | 12 | 6 | 50 |
8 | 60/90/120 | 16 | 8 | 60 |
10 | 60/90/120 | 20 | 10 | 75 |
12 | 60/90/120 | 24 | 12 | 75 |
For more specifications, please contact our sales customer service |
Used in Milling Machine, CNC, Drill press, Engraving machine. Metal, woodworking, alloy steel, stainless steel, etc.
High rigidity, widely used in the shallow slot, profile milling, and finish machining.
