Product Details
Place of Origin: China
Brand Name: OEM/ODM
Certification: ISO9001
Model Number: Carbide Tools for woodworking
Payment & Shipping Terms
Minimum Order Quantity: 10PCS
Price: To be negotiated
Packaging Details: Customized Package
Delivery Time: 7-15days
Payment Terms: T/T,Paypal,Alipay
Supply Ability: 100000000000PCS
Feed Rate: |
Varies |
Overall Length: |
38-200mm |
Flute Length: |
Varies |
Material: |
Tungsten Steel |
Cutting Edge Material: |
Varies |
Coating: |
AlTiN, TiAIN, Naco,Tin,DLC,Customized |
Number Of Flutes: |
1/2/3/4/5/6/8 |
Shape: |
End Mill |
Feed Rate: |
Varies |
Overall Length: |
38-200mm |
Flute Length: |
Varies |
Material: |
Tungsten Steel |
Cutting Edge Material: |
Varies |
Coating: |
AlTiN, TiAIN, Naco,Tin,DLC,Customized |
Number Of Flutes: |
1/2/3/4/5/6/8 |
Shape: |
End Mill |

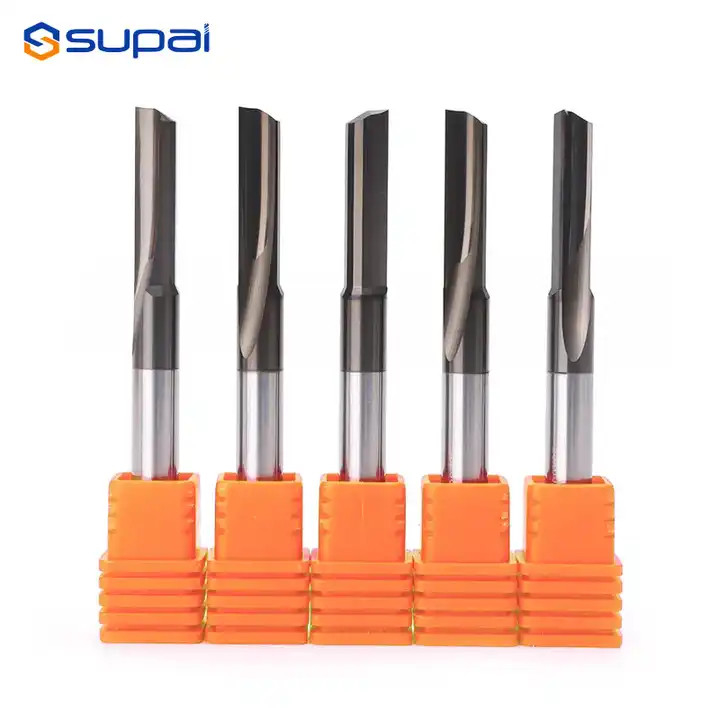

Carbide end mills are a popular choice for metalworking applications due to their exceptional hardness and heat resistance. Ideal for milling operations that involve cutting and shaping various metals, like steel, stainless steel, aluminum, and titanium, they offer performance and durability. When selecting a carbide end mill, there are several factors to take into consideration, such as grade, coating, flute design, helix angle, and cutting parameters.
The grade of carbide end mill is important as it affects its wear resistance and tool life. End mills are available in micrograin, submicron, and ultrafine grain carbide, with higher-grade carbide offering better performance. Many carbide end mills feature coatings, such as TiN (titanium nitride), TiCN (titanium carbonitride), TiAlN (titanium aluminum nitride), and AlTiN (aluminum titanium nitride), that provide additional hardness, lubricity, and heat resistance.
The design of the flutes of an end mill is also key, as it can determine the cutting efficiency and chip evacuation. For metalworking, two- and three-flute end mills are both commonly used. Two-flute end mills are better for cutting softer materials, while three-flutes offer a better balance between chip removal and finish quality. Additionally, the helix angle of a carbide end mill should be considered, as a higher angle will promote better chip evacuation.
Finally, the choice of an end mill should consider the specific metalworking operation being performed, such as roughing, finishing, or slotting. Depending on the operation, different cutting parameters, such as feed rate, depth of cut, and spindle speed, may be more suitable.
Milling: Carbide end mills are extensively used in milling operations to cut and shape various types of metals. They are employed in applications such as face milling, peripheral milling, slotting, contouring, and profiling. Carbide end mills can efficiently remove material and create precise features with high surface finish quality.
Drilling: Carbide end mills with drill point geometry can be used for drilling holes in metal. They provide accurate and precise hole placement and are suitable for both through-hole and blind-hole drilling applications.
Roughing: Carbide end mills with a coarse pitch or roughing geometry are ideal for roughing operations, where large amounts of material need to be removed quickly. They are used to rapidly remove excess material, leaving a rougher surface finish that can be subsequently refined with finer end mills.
Finishing: Carbide end mills with a fine pitch or finishing geometry are designed for achieving high-quality surface finishes. They are used for final passes and fine detail work, ensuring smooth and precise surfaces.
Contouring and 3D Machining: Carbide end mills with ball nose or corner radius geometry are used for contouring and 3D machining applications. They enable the creation of intricate shapes, curved surfaces, and detailed features.
Hardened Materials: Carbide end mills are particularly well-suited for machining hardened materials, such as hardened steels, tool steels, and alloys. Their hardness and wear resistance allow them to withstand the high cutting forces and temperatures generated when machining these materials.
High-Speed Machining: Carbide end mills excel in high-speed machining applications, where cutting speeds are significantly faster than traditional machining operations. Their hardness and heat resistance make them capable of withstanding the higher temperatures generated at high cutting speeds.
Aerospace and Automotive Industries: Carbide end mills are extensively used in the aerospace and automotive industries for machining components such as engine parts, turbine blades, transmission parts, and molds. These industries often require high precision, tight tolerances, and excellent surface finishes, all of which can be achieved with carbide end mills.
General Metalworking: Carbide end mills find applications in various general metalworking tasks, including fabrication, mold making, tool and die production, and maintenance and repair operations.
We offer OEM/ODM customized services for carbide end mills, also known as milling cutters or carbide tools, which are made of tungsten steel. With brand name of OEM/ODM, the model number of the carbide tools for woodworking is available. Our Carbide End Mills are certified by ISO9001. The minimum order quantity is 10PCS, and the price is To be negotiated. We offer customized package for the delivery, and the delivery time is 7-15days. Payment terms include T/T, Paypal, and Alipay. The supply ability is 100000000000PCS. The shank diameter, cutting speed, and helix angle varies for different products.
The overall length of the Carbide End Mills ranges from 38-200mm. The material we used is tungsten steel, and the helix angle includes 35/38/40/45. Our customized services can meet your specific demand.
Carbide End Mill products are packaged in a protective cardboard box to ensure that the product is not damaged during shipping. The box is designed to allow for maximum protection of the product, while also being lightweight and easy to carry. The box also contains instructions on how to use the Carbide End Mill product.
Shipping for Carbide End Mill products is done through a reliable courier service. The products are insured against loss or damage in transit, and are tracked until they reach their destination. All our products are shipped with a confirmation number, so that you can track the progress of your order.
